SMA TO QMA F/F Adapter 18 GHz

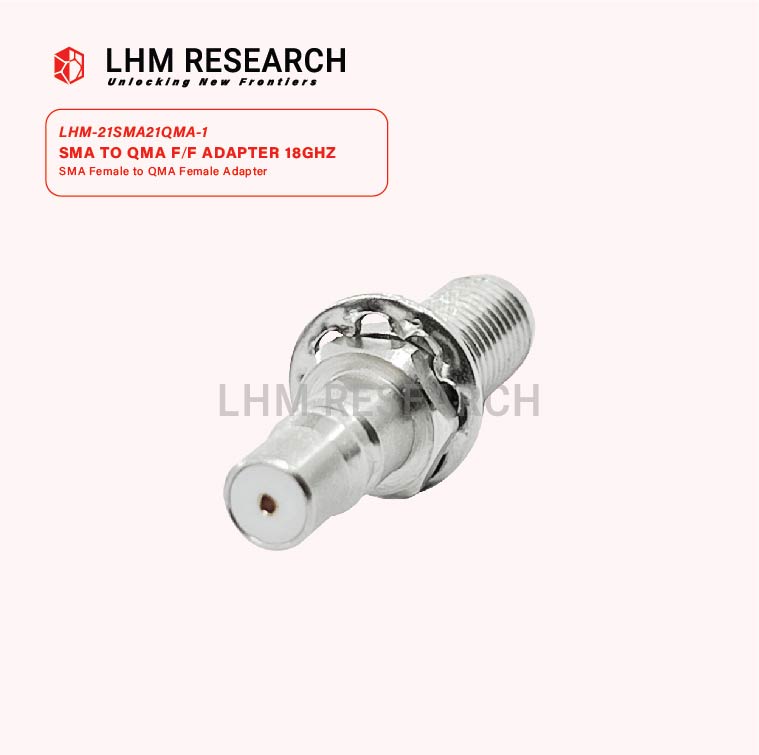

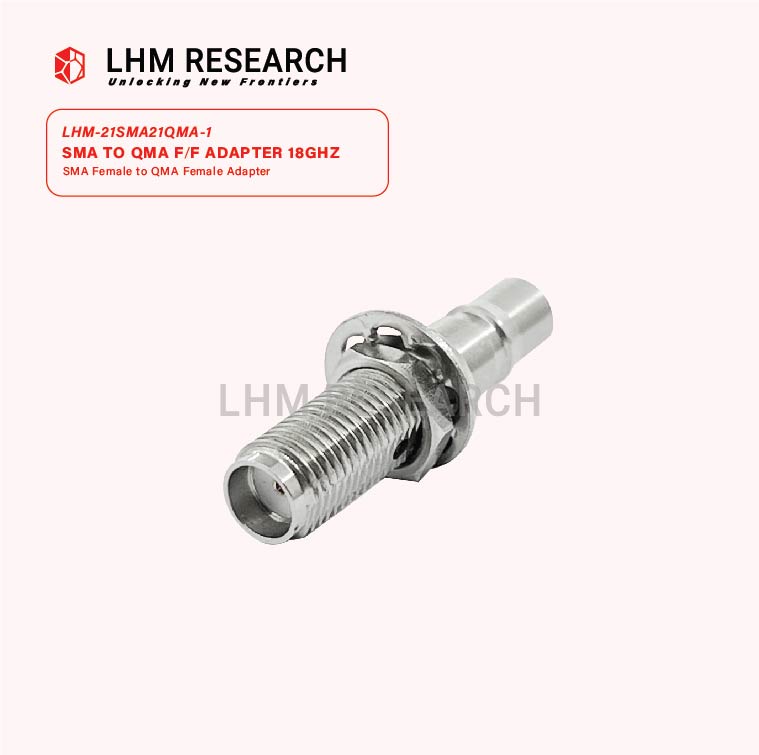

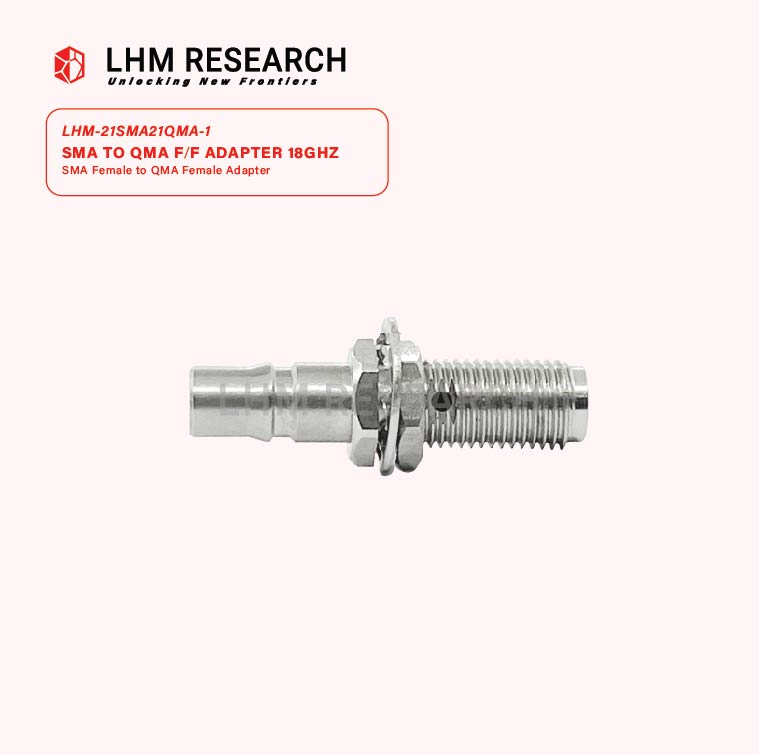

SMA Female to QMA Female Adapter
The SMA to QMA Female-to-Female Adapter enables seamless connectivity between SMA and QMA interfaces for RF applications up to 18 GHz. This precision adapter features an SMA Female on one end and a QMA Female on the other, supporting quick-disconnect functionality on the QMA side while maintaining excellent electrical performance. It is ideal for adapting legacy SMA systems to modern QMA-based setups in both lab and field environments.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | QMA |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.3:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 18 GHz |

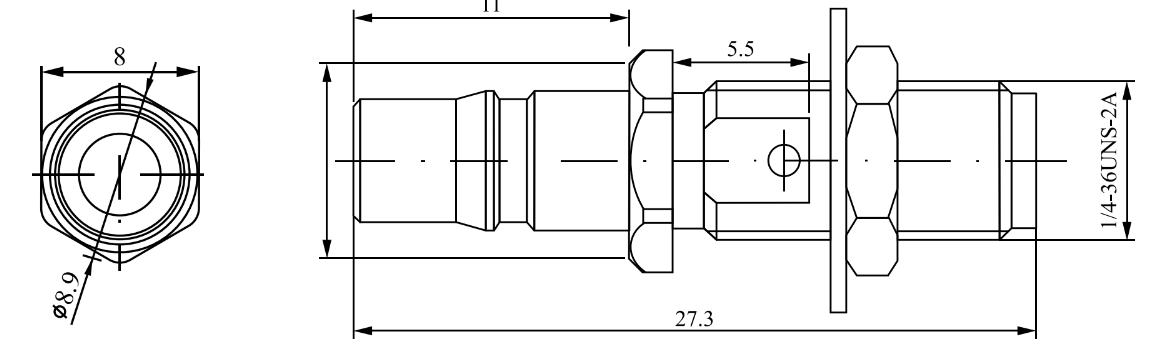

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper, Gold Plated |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PTFE |
