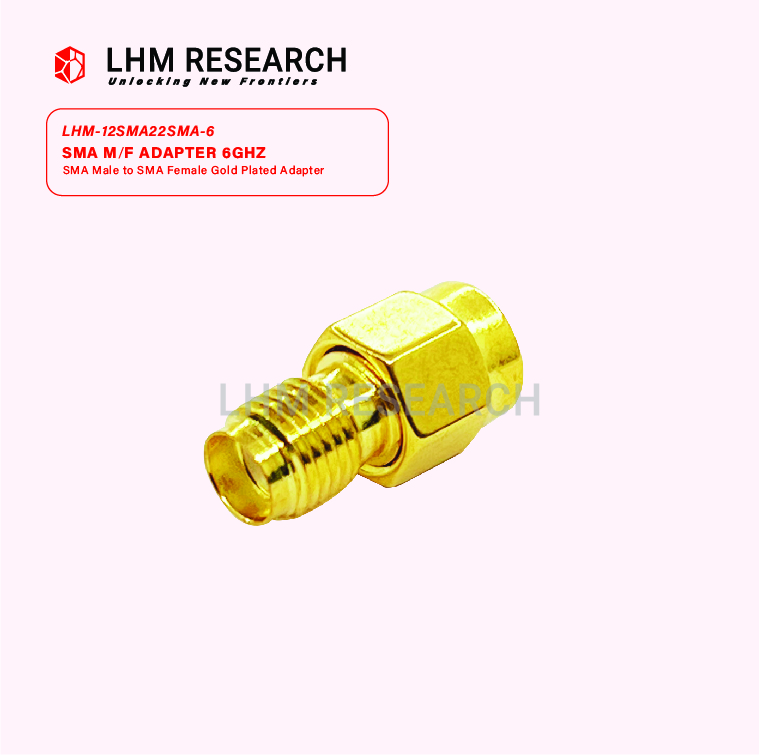

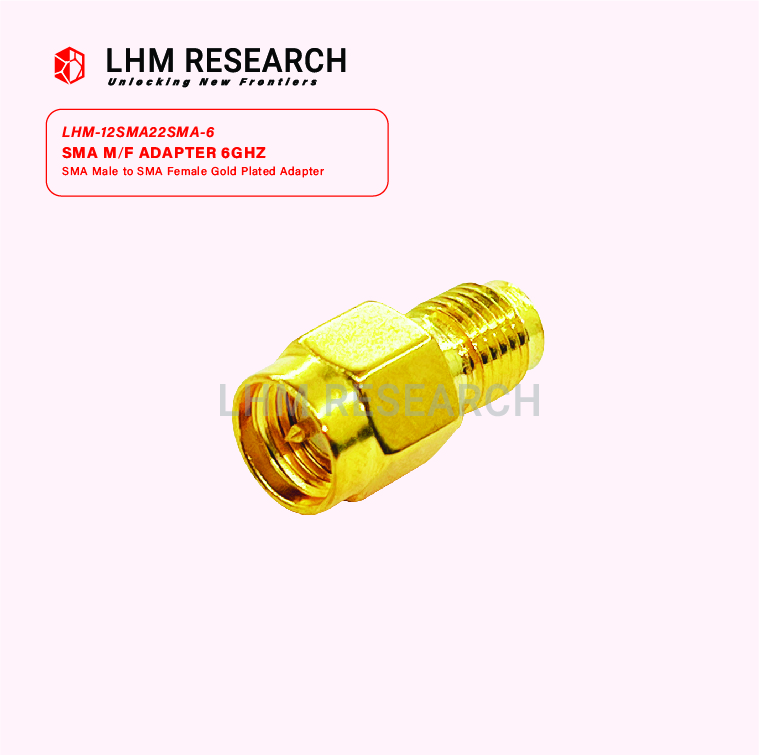

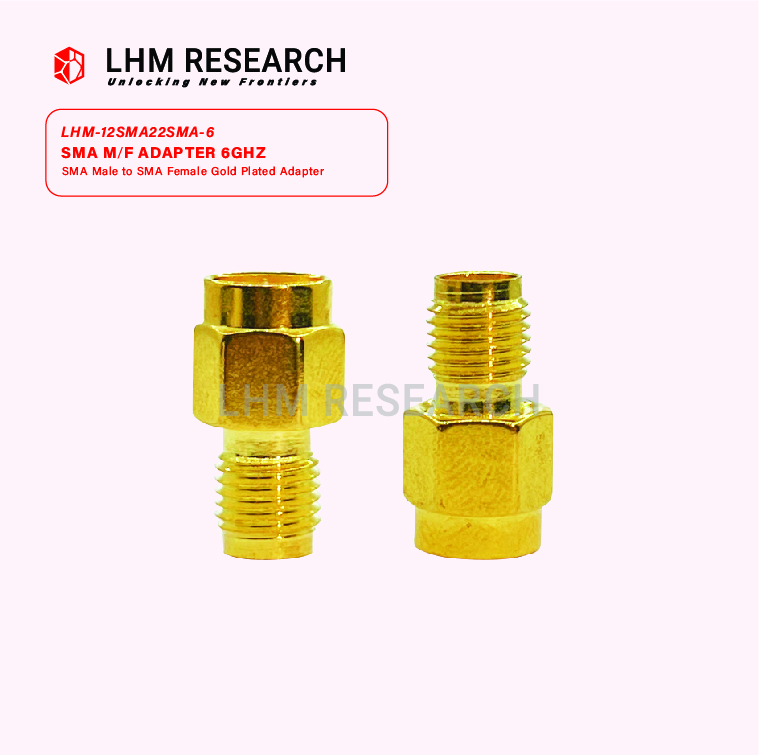

SMA M/F Adapter 6 GHz
SMA Male to SMA Female Gold Plated Adapter
The SMA Male to SMA Female Adapter – 6 GHz is a high-quality RF connector designed for signal extension and interface conversion in RF systems. Supporting frequencies up to 6 GHz, it ensures reliable performance in test setups, communication devices, and antenna systems.
Constructed from durable brass with gold-plated contacts, this adapter offers excellent corrosion resistance, low insertion loss, and stable signal transmission. Ideal for applications requiring secure and efficient SMA interconnections in both lab and field environments.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.10:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 6 GHz |

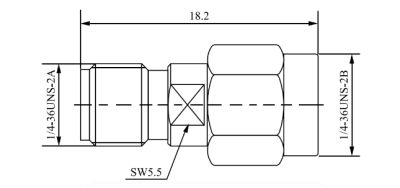

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper, Gold Plated |
| Body Material | Brass, Gold Plated |
| Insulator | Teflon |
