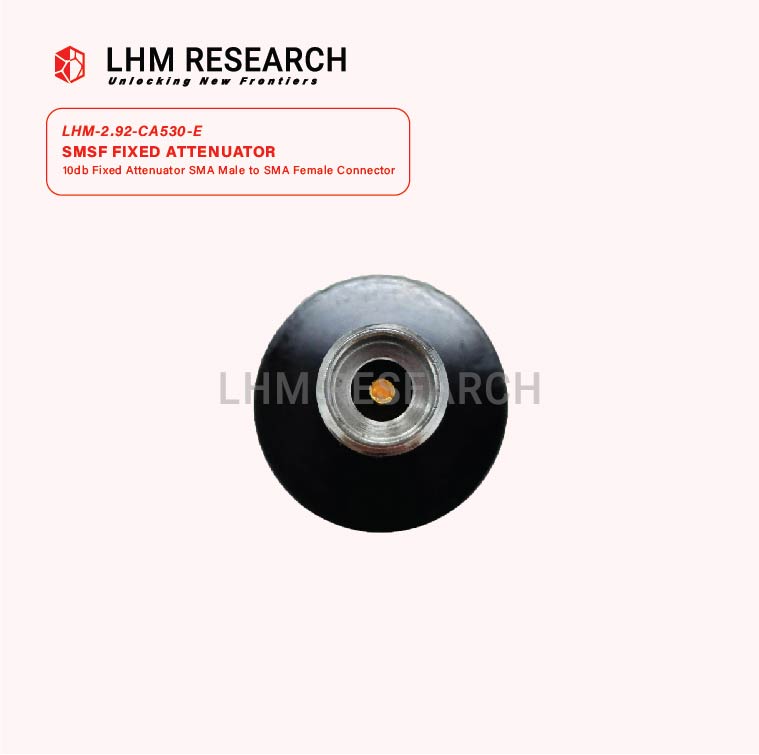

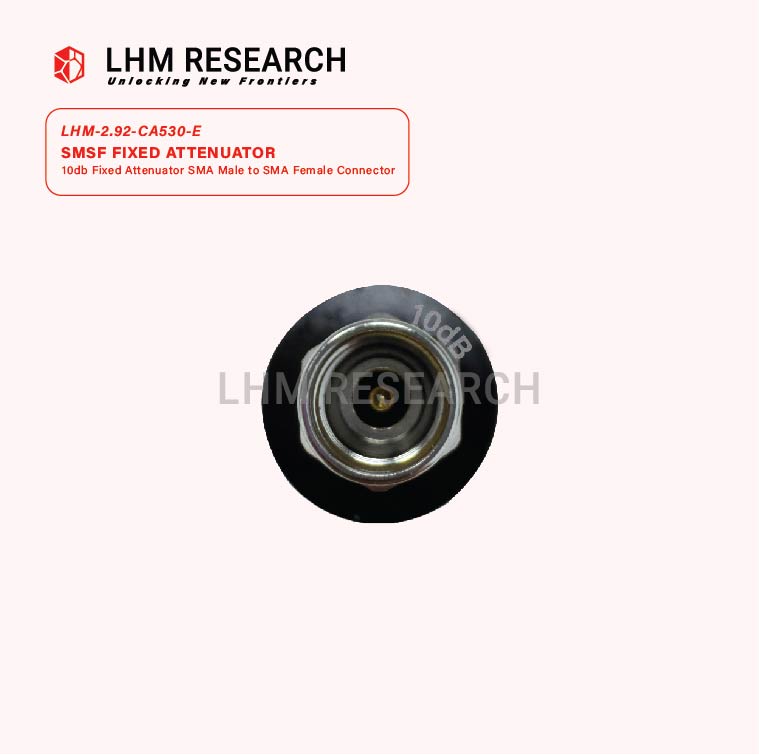

SMSF Fixed Attenuator
10db Fixed Attenuator SMA Male to SMA Female Connector
A fixed attenuator is an electronic component that reduces the power of a signal without significantly degrading its quality. It is used in various applications to manage signal levels, match impedance, and protect sensitive components from receiving too high a signal level.
An SMA Male to SMA Female attenuator is typically a small, cylindrical component with an SMA male connector on one end and an SMA female connector on the other. These connectors are threaded, allowing for a secure connection to RF cables or equipment.
Compliance Certification
- RoHs Compliant
Key Specifications
| Connector Type 1 | SMPM | Connector Type 2 | Fakra |
| Connector Gender 1 | Male | Connector Gender 2 | Plug |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.25:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 40 GHz |

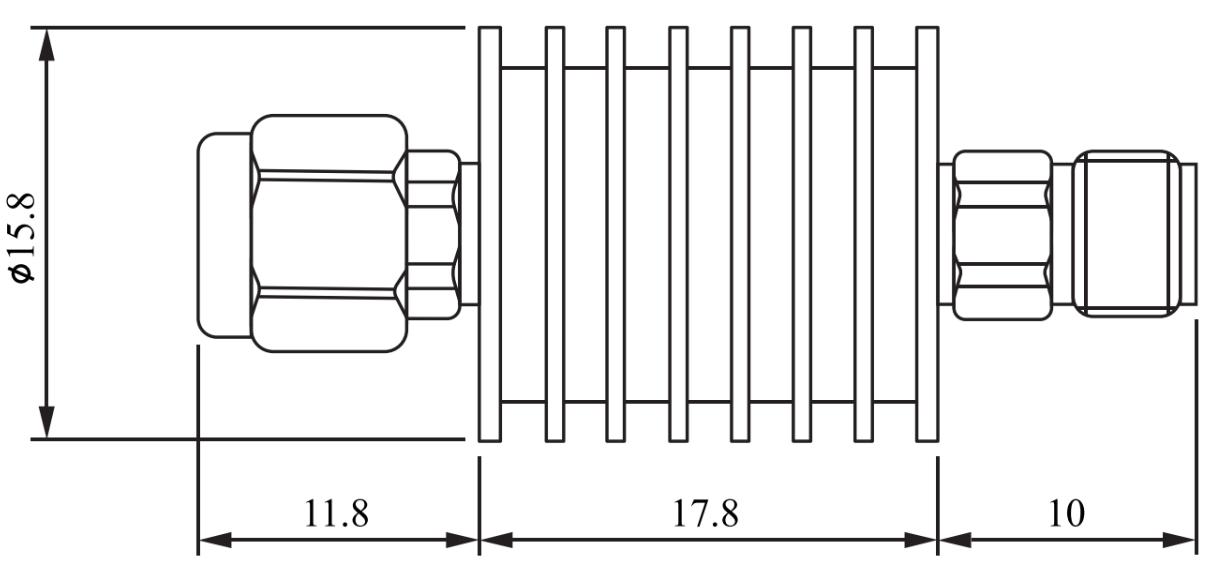

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Body Material & Plating | Passivated Stainless Steel |
| Contact Material & Plating | Male: Brass Gold Plating 1.27 μm Female: Beryllium Bronze Gold Plating 1.27 μm |
