MILLIMETER WAVE ADAPTER 3.5mm

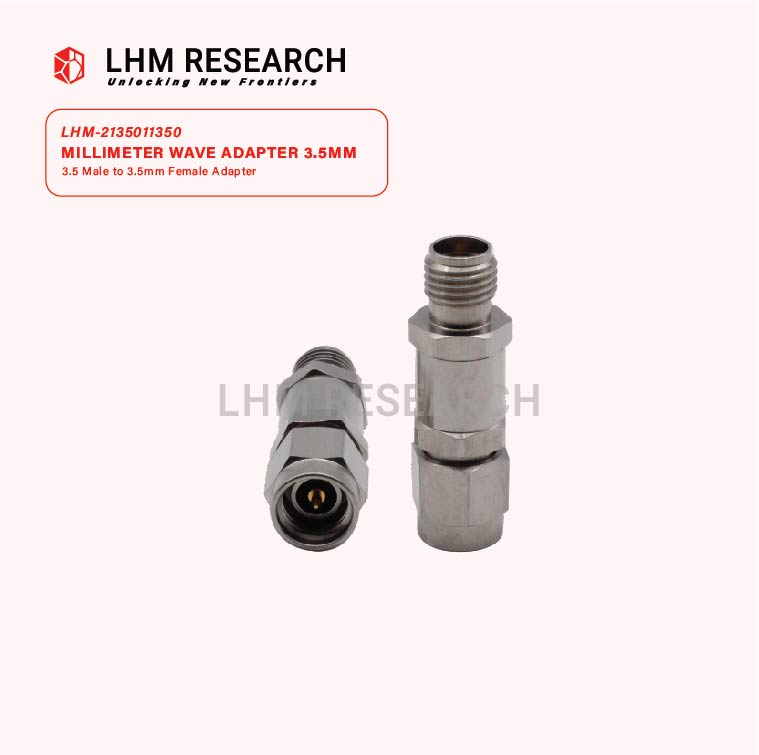

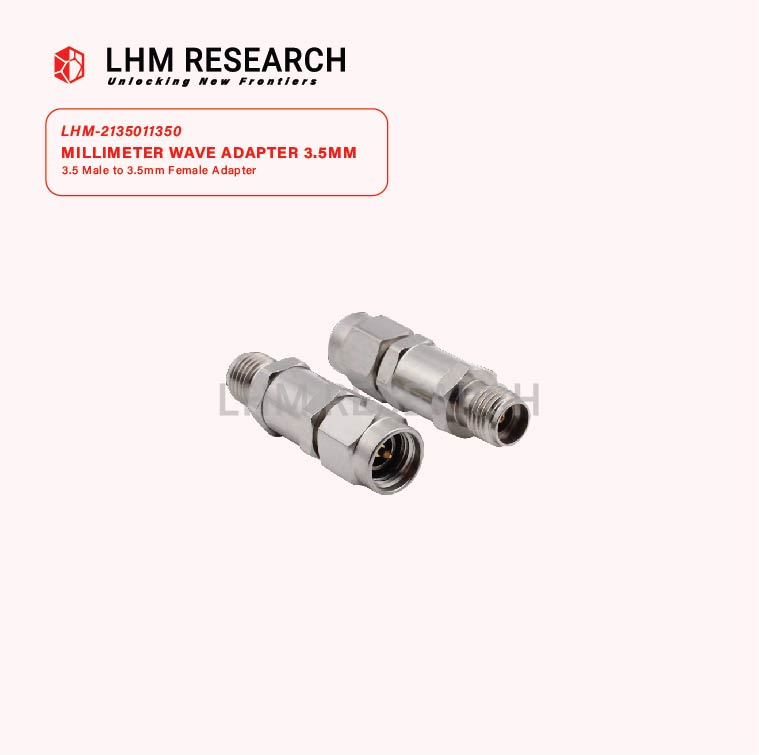

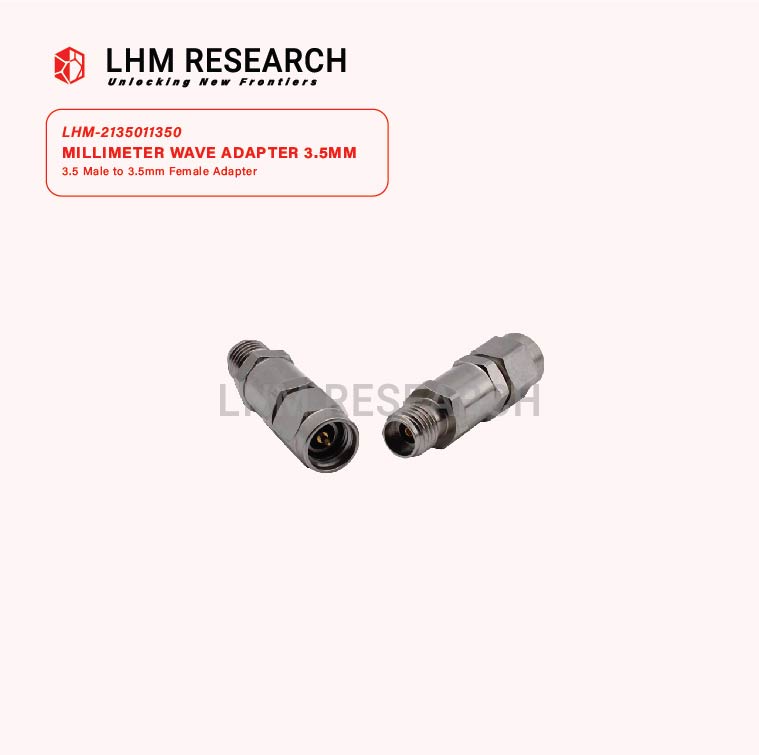

3.5mm Male to 3.5mm Female Adapter
The 3.5mm Male to 3.5mm Female Millimeter Wave Adapter is engineered for precision RF applications requiring consistent performance at millimeter-wave frequencies. Designed for use up to 26.5 GHz (or higher, depending on model), it offers excellent impedance matching, low VSWR, and minimal signal loss.
Ideal for test and measurement systems, high-frequency modules, and lab setups, this adapter features precision stainless steel construction for durability and long-term stability in demanding environments.
Compliance Certification
- RoHS Compliant
Key Specifications
| Connector Type 1 | 3.5mm | Connector Type 2 | 3.5mm |
| Connector Gender 1 | Male | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.15:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 33 GHz |

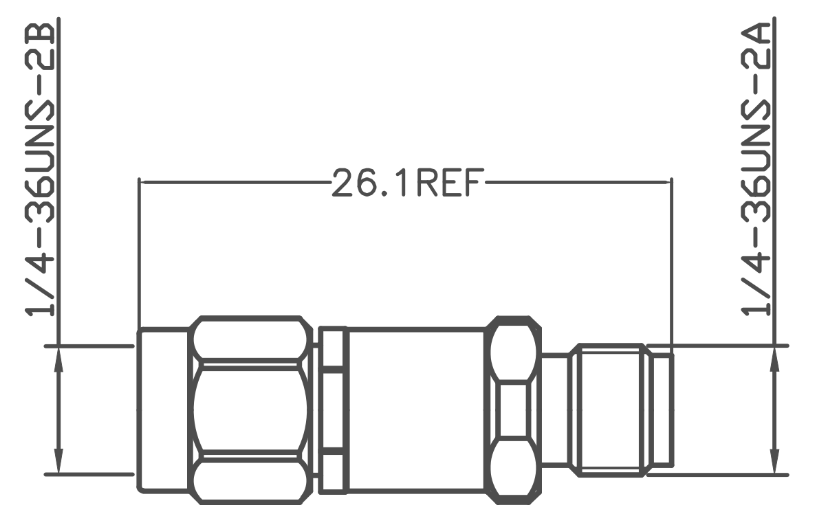

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper Gold Plating |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PEI |
