MILLIMETER WAVE ADAPTER

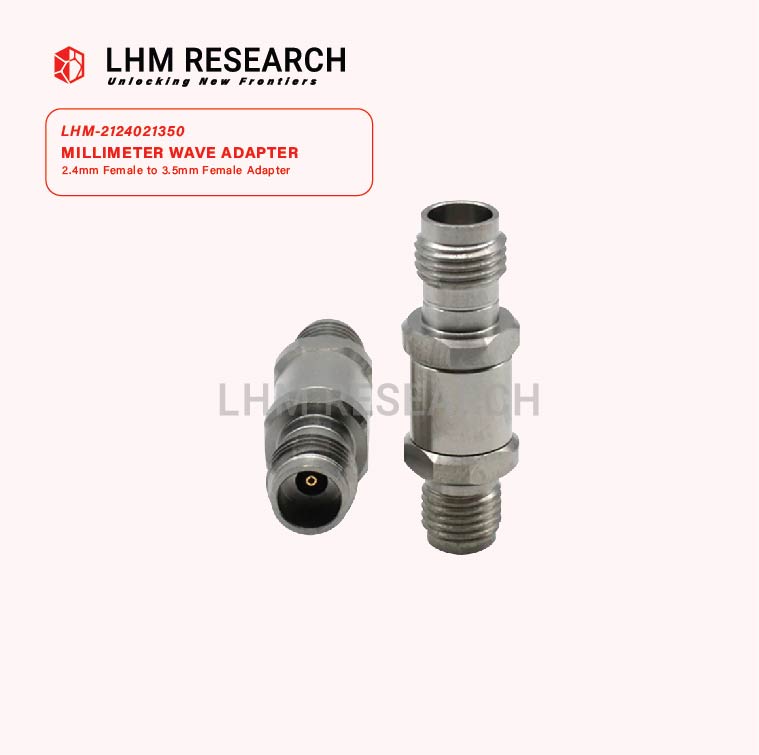

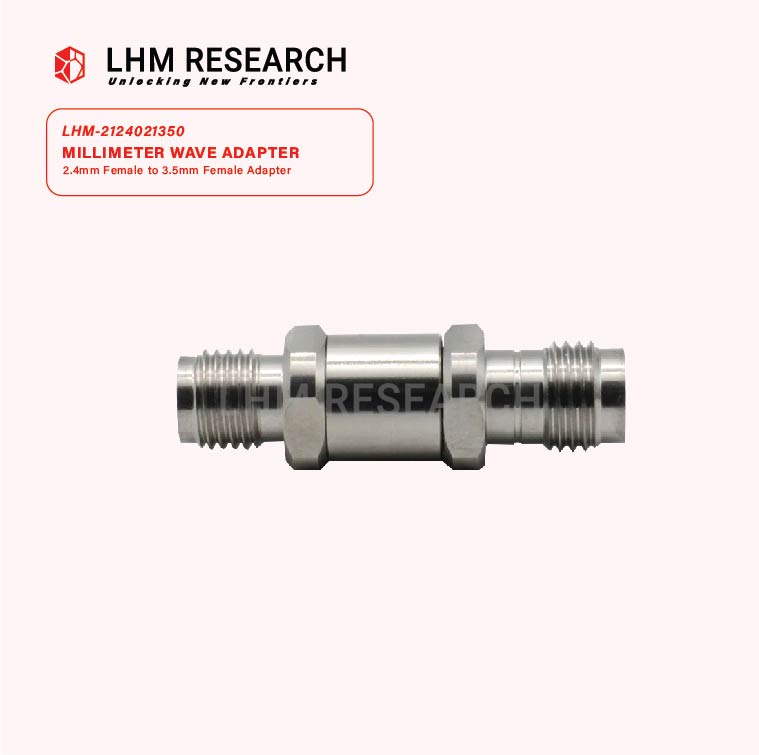

2.4mm Female to 3.5mm Female Adapter
The 2.4mm Female to 3.5mm Female Millimeter Wave Adapter is engineered for precision and performance in high-frequency applications. Designed to operate reliably up to 33GHz, this adapter ensures low insertion loss and excellent signal integrity between 2.4mm and 3.5mm connectors.
Whether used in advanced RF test systems, telecom infrastructure, or millimeter-wave research, this adapter delivers consistent, high-quality connections with durable construction and tight tolerances. Perfect for engineers, technicians, and researchers who demand accuracy and reliability in every connection.
Key Specifications
| Connector Type 1 | 2.4mm | Connector Type 2 | 3.5mm |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.2:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 34 GHz |

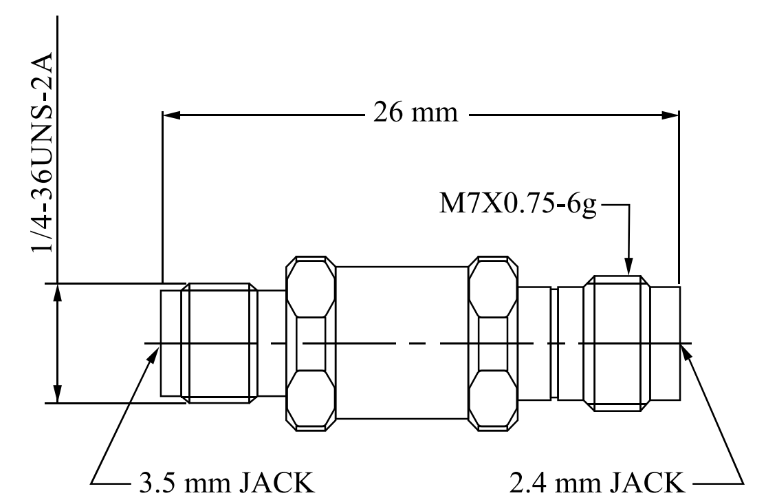

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Gold Plated Beryllium Copper |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PEI |
