SMA to SMP Adapter 18 GHz

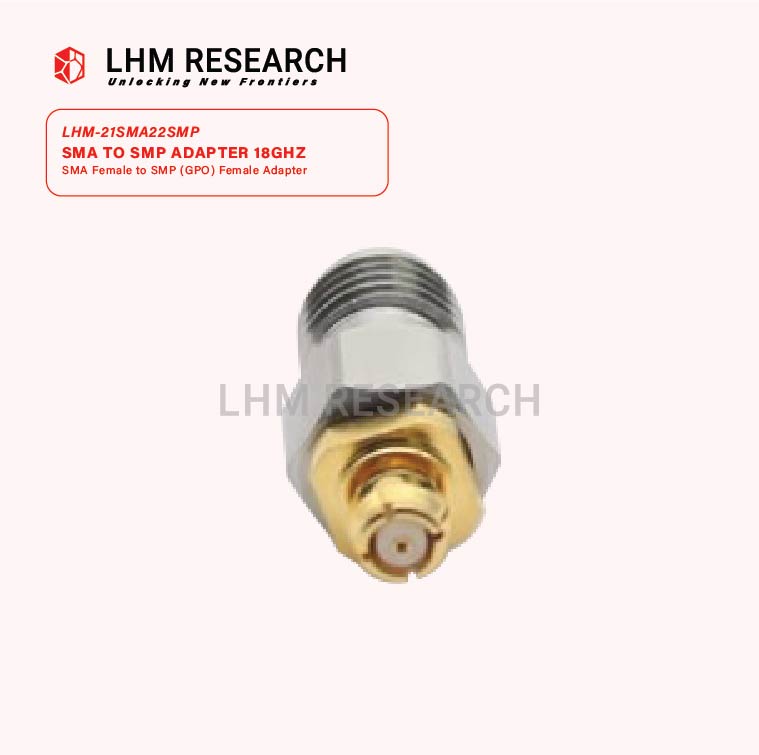

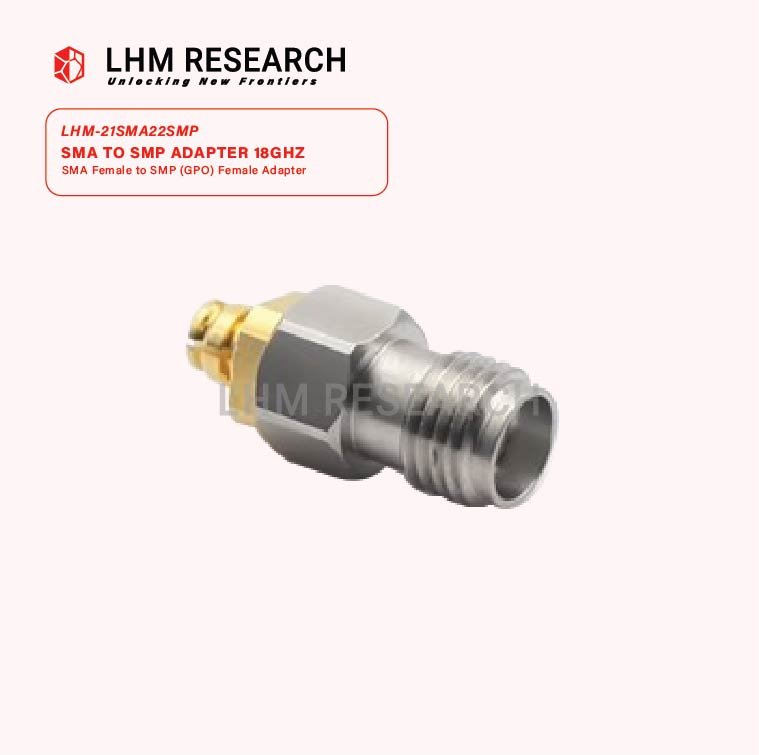

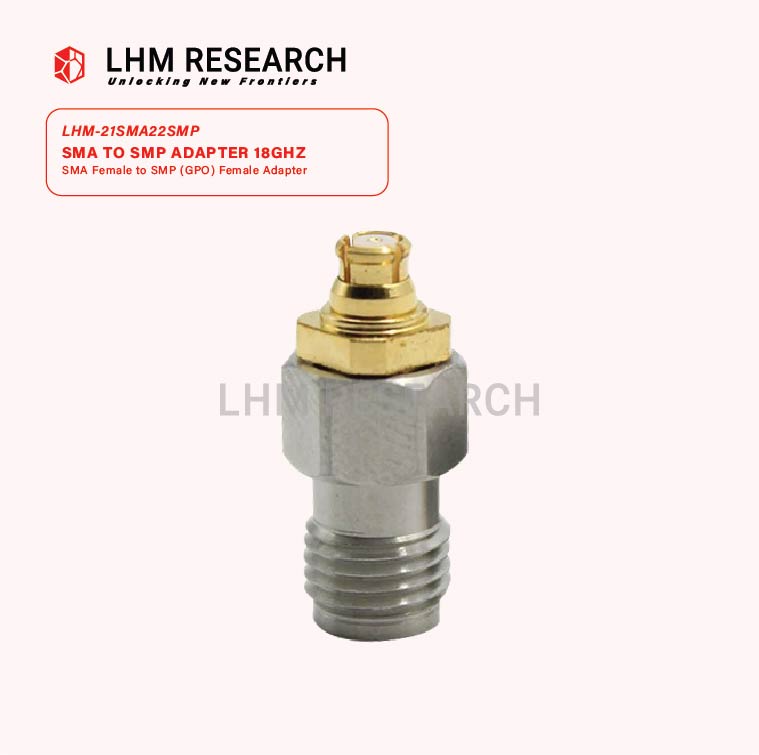

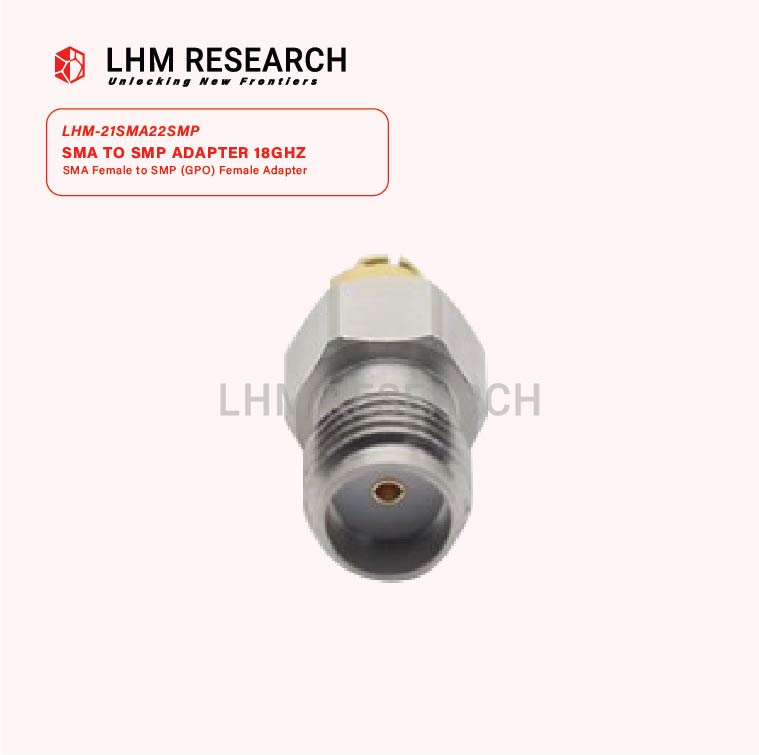

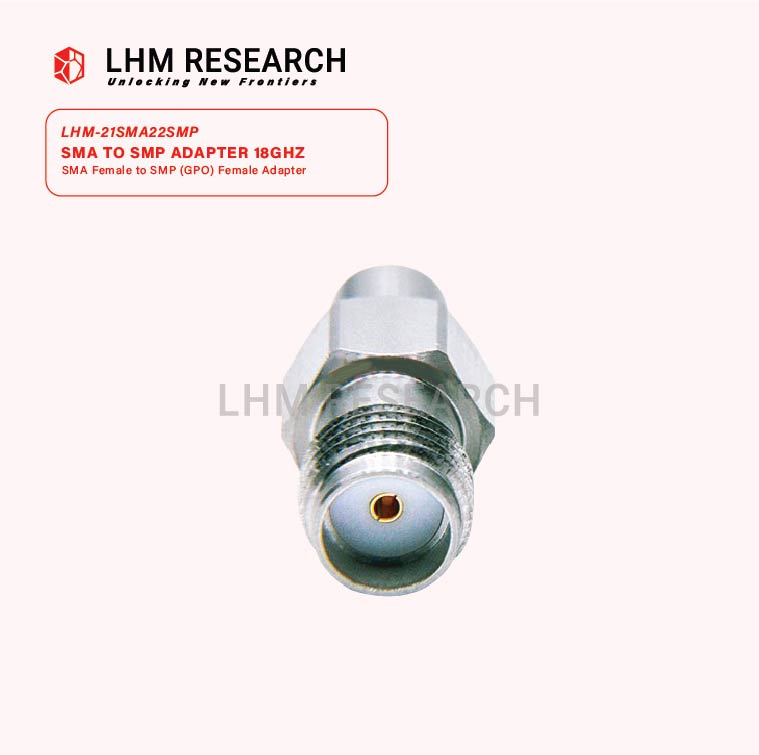

SMA Female to SMP (GPO) Female Adapter
The SMA Female to SMP (GPO) Female Adapter – 18 GHz provides a reliable transition between SMA and SMP connectors, supporting frequencies up to 18 GHz. This high-quality adapter ensures secure connections in RF systems, test setups, and communication devices.
Constructed with precision-engineered materials, the adapter offers excellent durability, low signal loss, and stable performance. It is ideal for applications requiring compact, high-frequency connections in systems where space is limited.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMP (GPO) |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | <1.2:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 18 GHz |

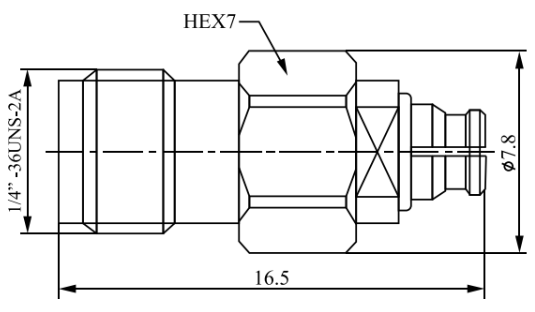

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Inner Conductor | Gold Plated Beryllium Copper |
| Outer Conductor | Passivated Stainless Steel & Gold Plated Beryllium Copper |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PTFE |
