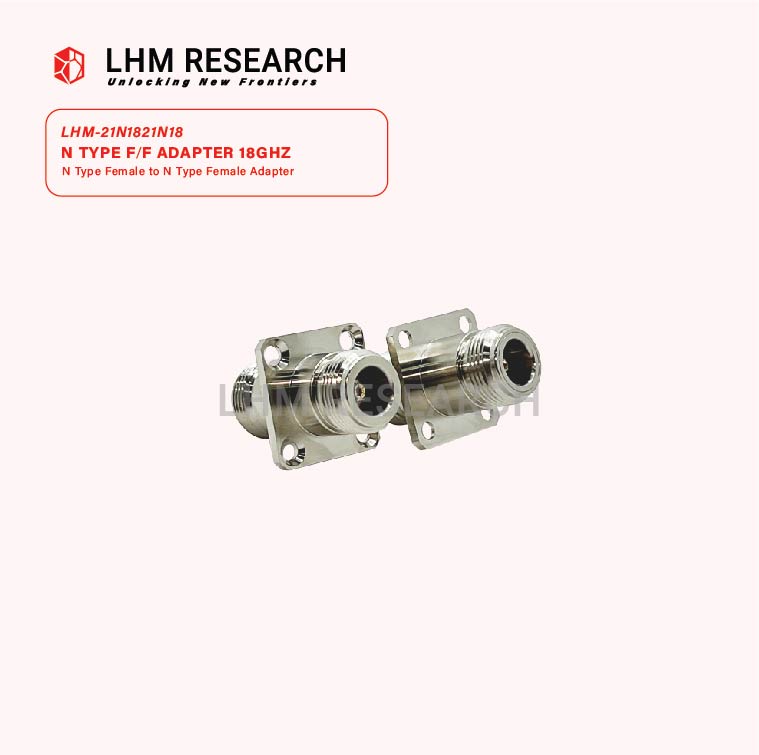

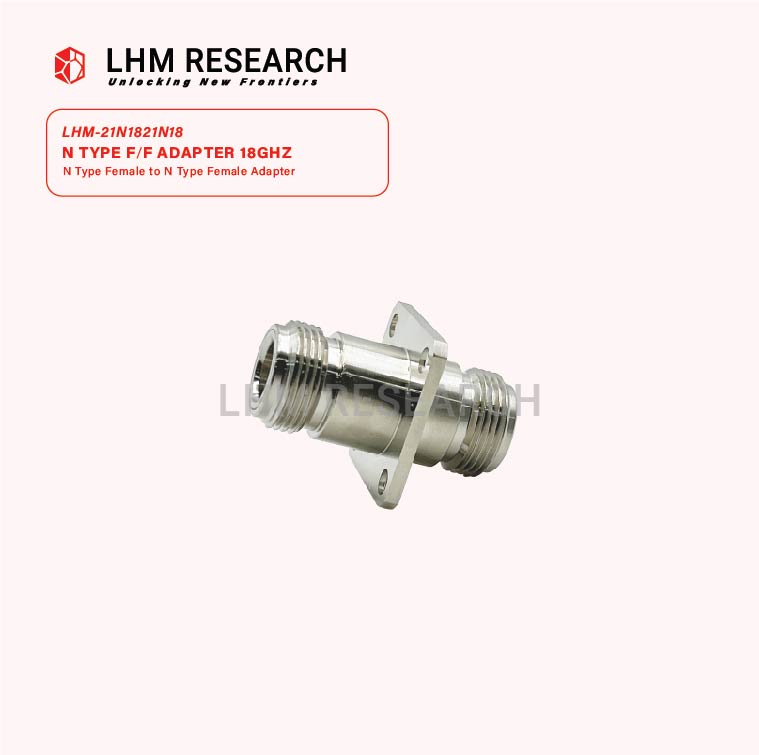

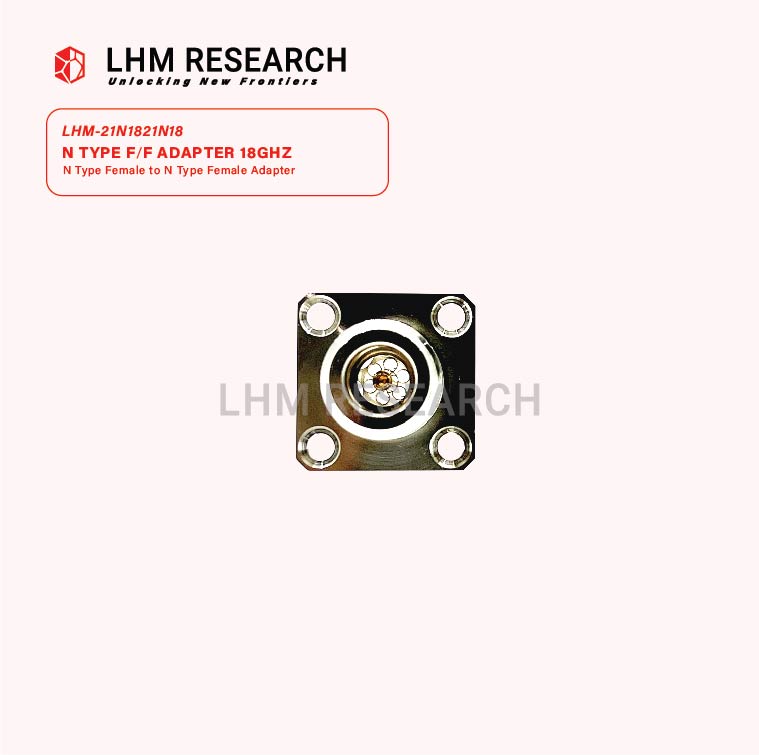

N Type F/F Adapter 18 GHz
N Type Female to N Type Female Adapter
The N Type Female to N Type Female Adapter – 18 GHz is a high-performance RF connector designed to join two N Type male connectors in systems operating up to 18 GHz. Ideal for use in test setups, RF equipment, and telecom infrastructure, it ensures reliable signal transmission with minimal insertion loss.
Built from durable materials with precision threading, this adapter provides secure connectivity, excellent electrical performance, and long-term durability in demanding environments.
Key Specifications
| Connector Type 1 | N Type | Connector Type 2 | N Type |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.25:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 18 GHz |

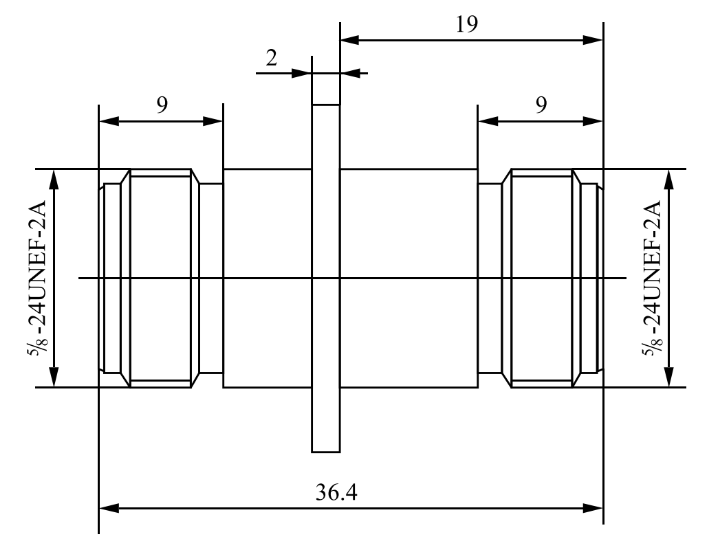

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Brass, Gold Plated |
| Boddy Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PTFE |
