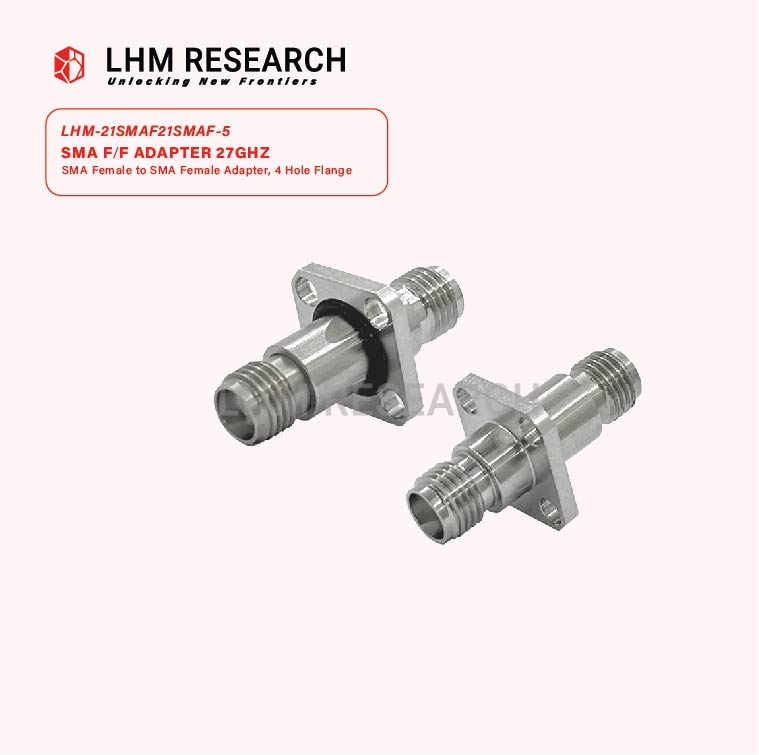

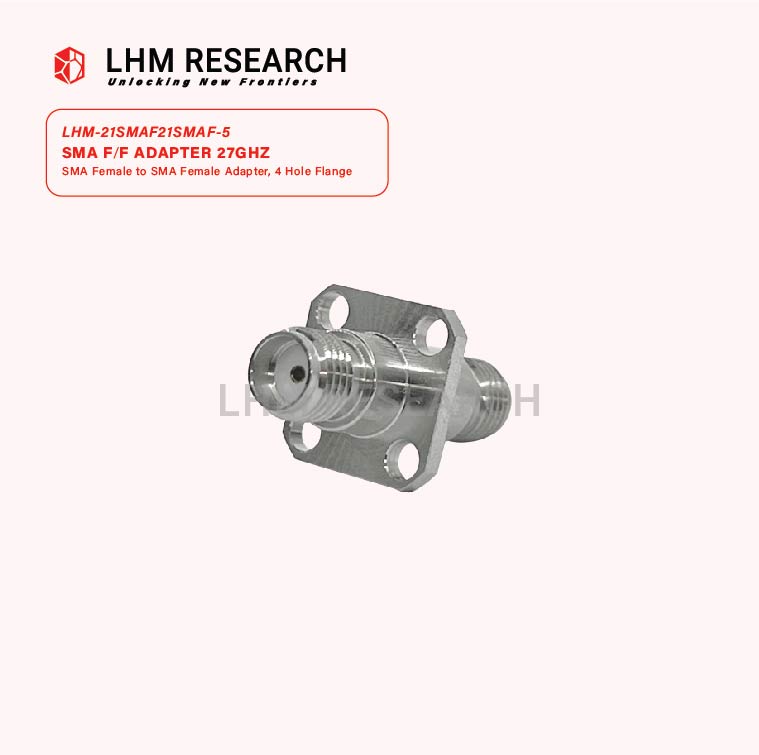

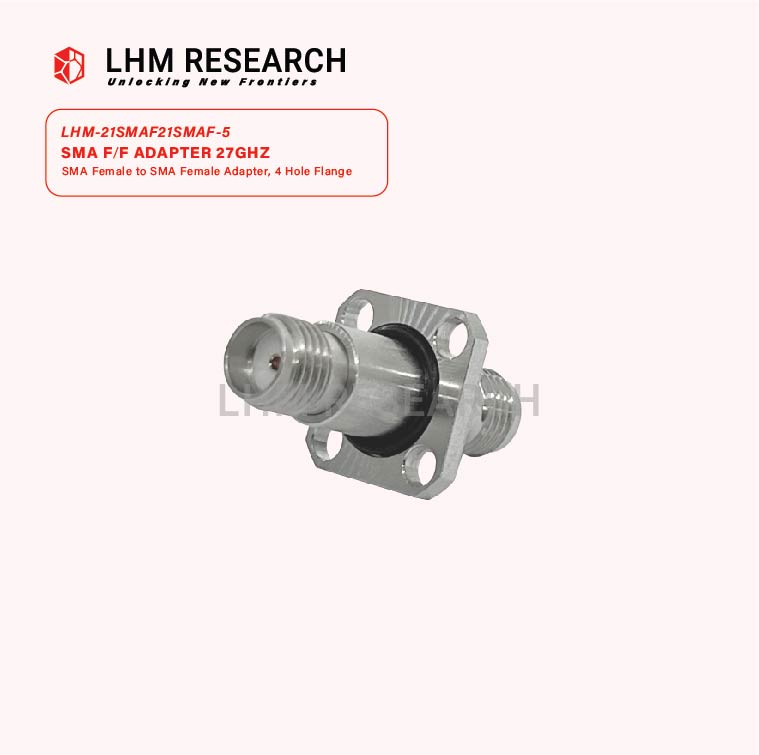

SMA F/F Adapter 27 GHz
SMA Female to SMA Female Adapter, 4 Hole Flange
The SMA Female to SMA Female Adapter – 27 GHz with a 4-hole flange mount is designed for high-frequency RF applications requiring secure panel or bulkhead mounting. It supports frequencies up to 27 GHz, making it ideal for precision RF systems, test setups, and communication modules.
Featuring gold-plated contacts and a robust flange design, this adapter ensures low insertion loss, excellent signal integrity, and reliable mechanical stability in demanding environments.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.15:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 27 GHz |

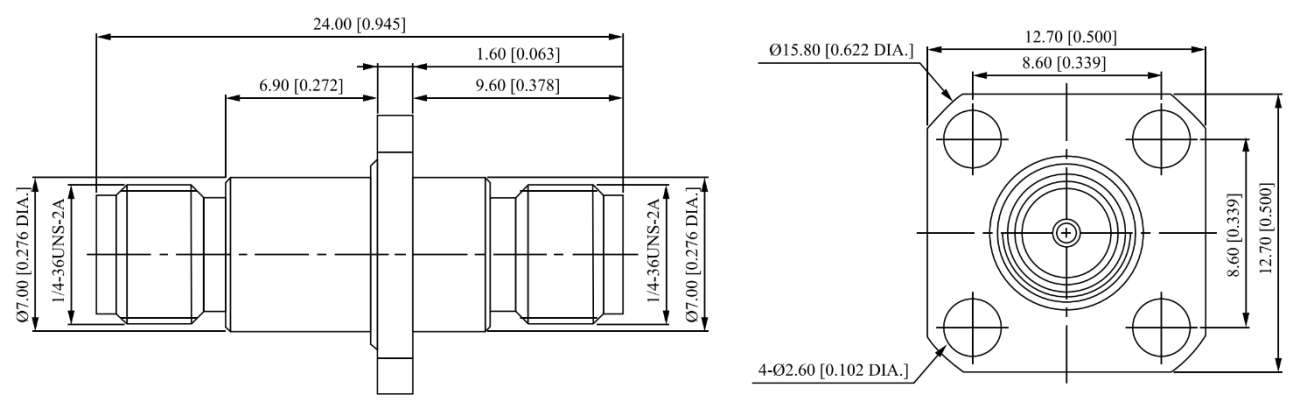

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper Alloy, Gold Plated |
| Body Material | Passivated Stainless Steel SU 303 |
| Insulator | PEI |
