SMA M/F Adapter 26.5GHz

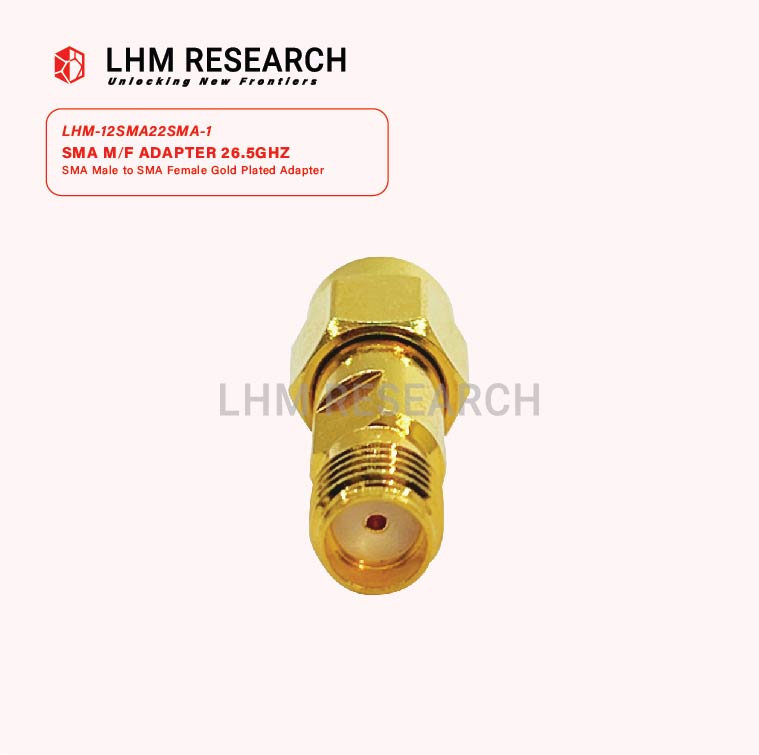

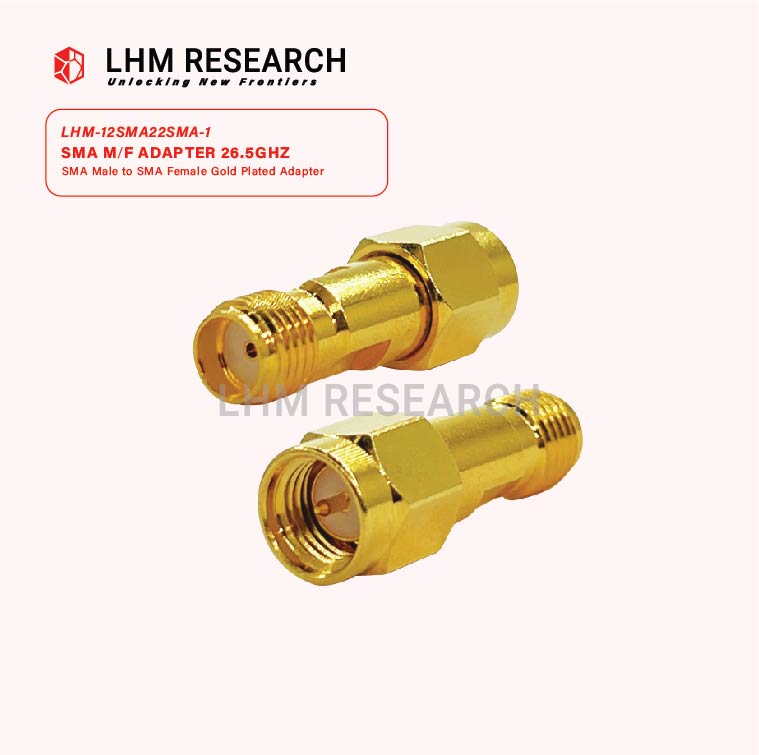

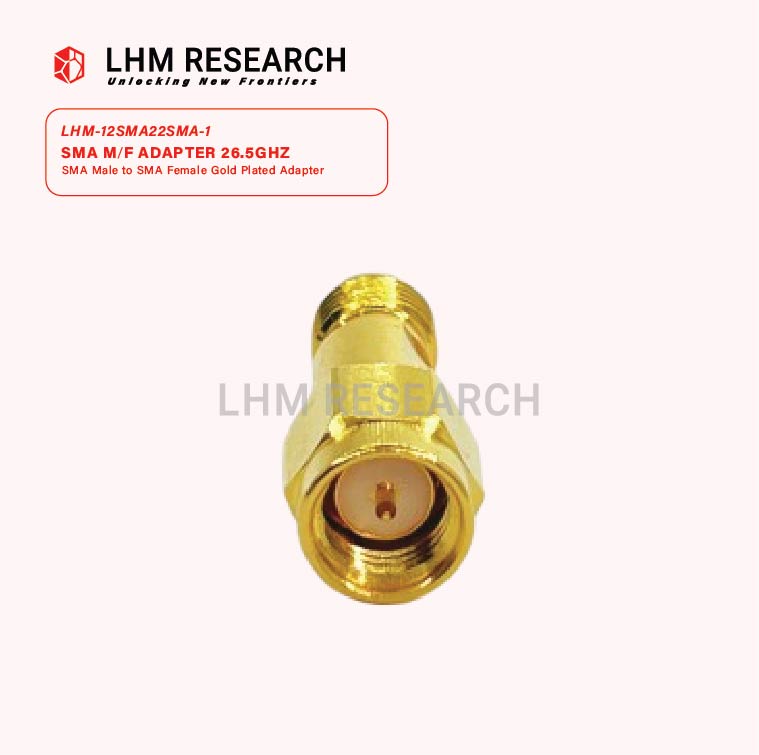

SMA Male to SMA Female Gold Plated Adapter
The SMA Male to SMA Female Adapter – 26.5 GHz is a precision RF connector designed for high-frequency signal transmission and SMA interface conversion. Supporting frequencies up to 26.5 GHz, it’s ideal for use in advanced RF testing, communication systems, and microwave applications.
Built with durable brass and gold-plated contacts, this adapter ensures excellent conductivity, low insertion loss, and reliable performance in demanding environments. Suitable for both lab and field applications where high-frequency stability is critical.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.25:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 26.5 GHz |

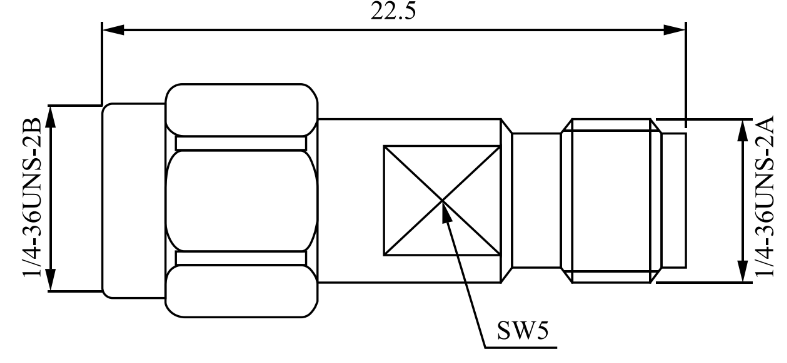

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Phosphor Bronze, Gold Plated |
| Body Material | Beryllium Copper, Gold Plated |
| Insulator | PTFE |
