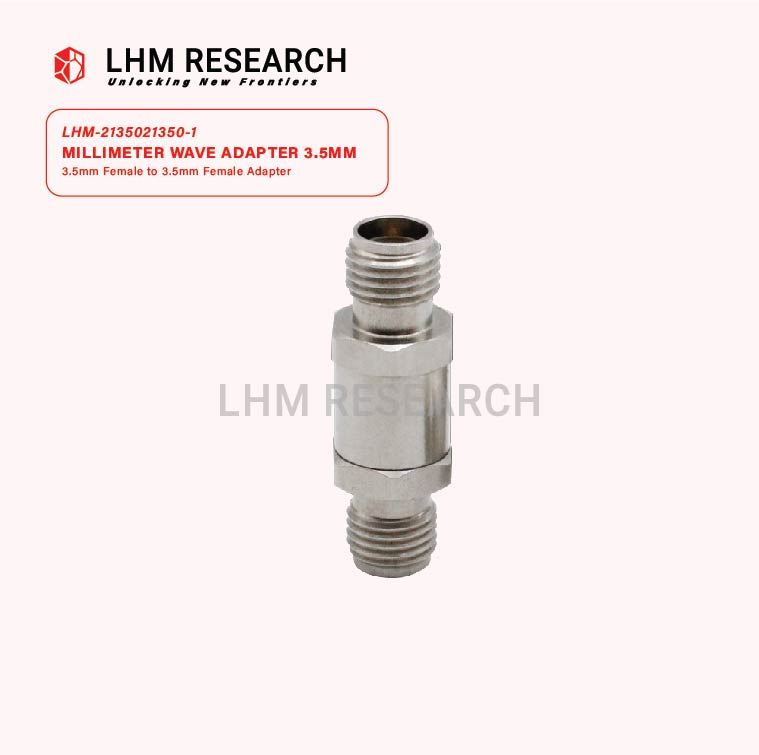

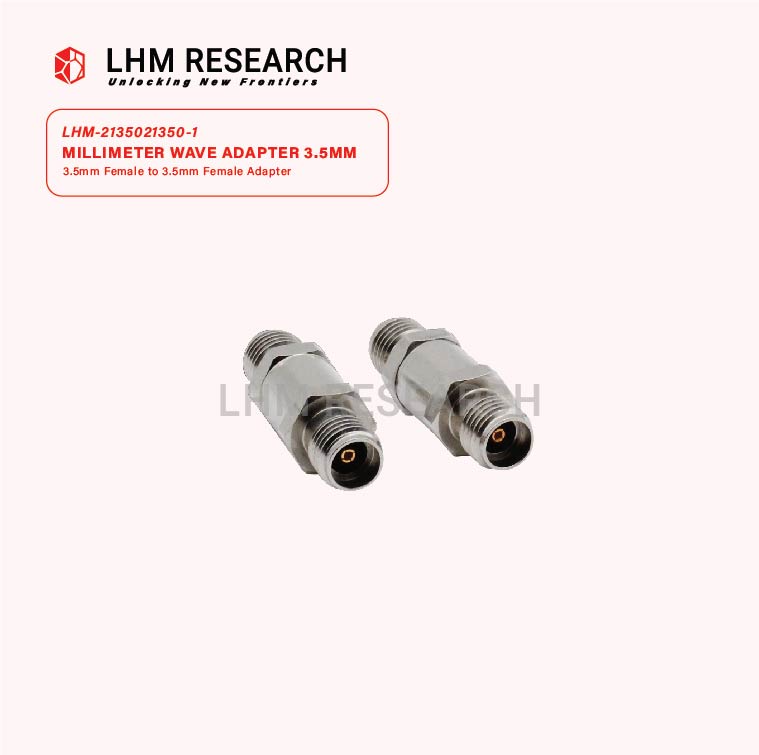

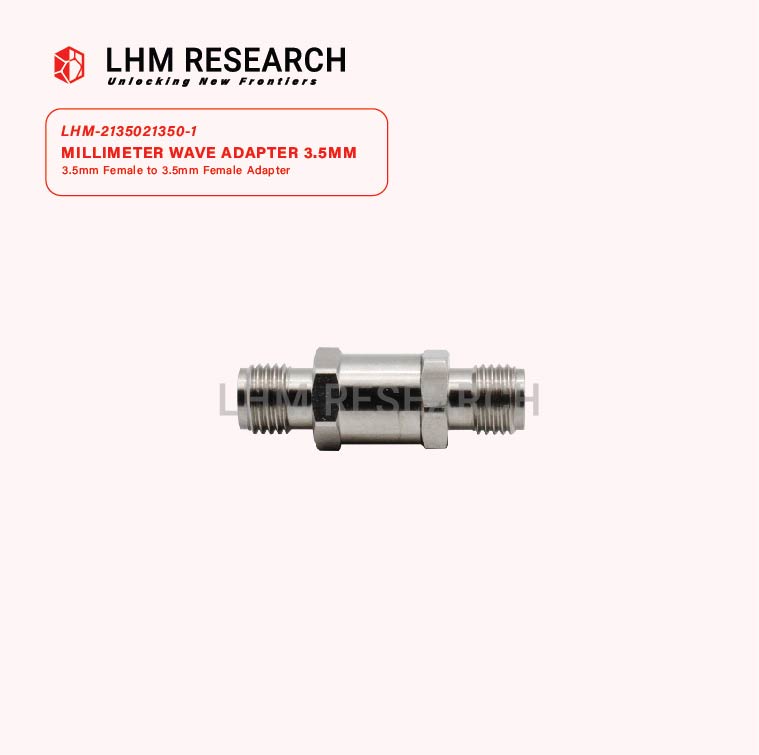

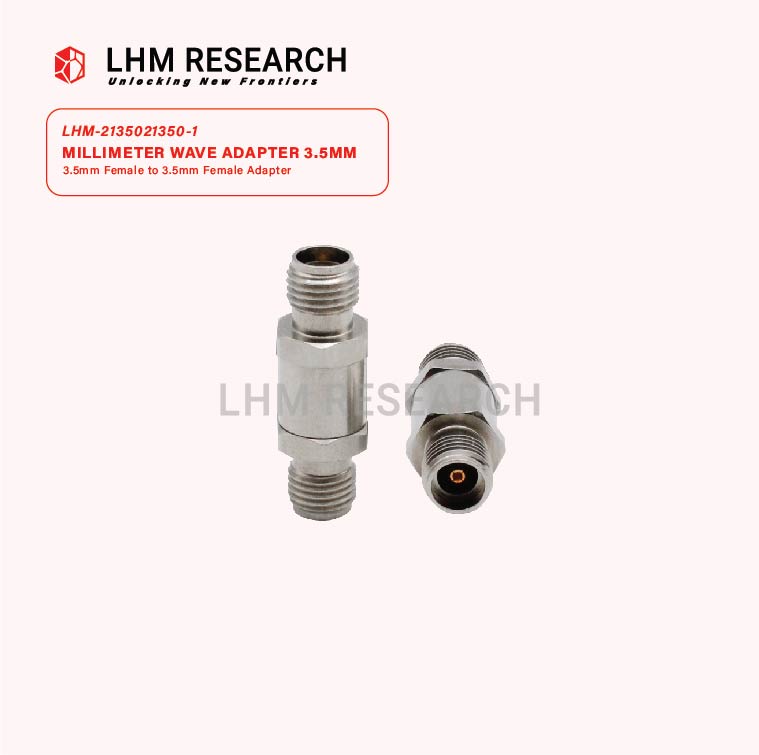

MILLIMETER WAVE ADAPTER 3.5MM
3.5mm Female to 3.5mm Female Adapter
The 3.5mm Female to 3.5mm Female Millimeter Wave Adapter is designed for high-frequency RF and microwave applications, supporting frequencies up to 26.5 GHz or higher with excellent signal integrity. It provides a reliable connection between two 3.5mm male connectors in test and measurement environments.
Constructed with precision stainless steel and engineered for low VSWR and minimal insertion loss, this adapter ensures stable, repeatable performance in demanding millimeter-wave systems.
Compliance Certification
- RoHS Compliant
Key Specifications
| Connector Type 1 | 3.5mm | Connector Type 2 | 3.5mm |
| Connector Gender 1 | Female | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | <1.15:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 33 GHz |

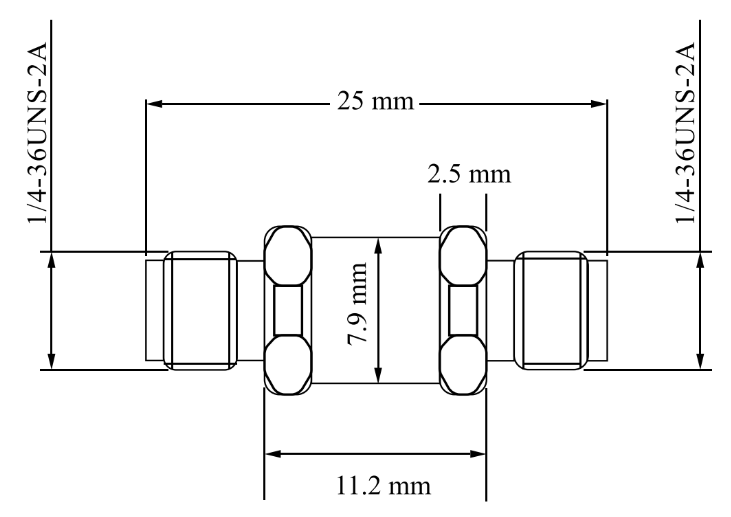

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper Gold Plating |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PEI |
