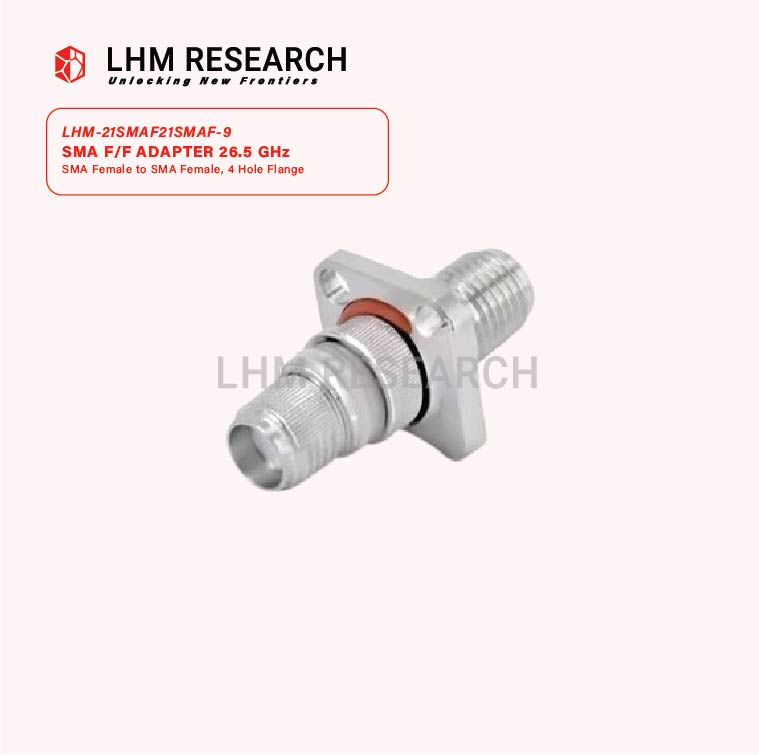

SMA F/F Adapter 26.5 GHz
SMA Female to SMA Female, 4 Hole Flange
The SMA Female to SMA Female Adapter (4 Hole Flange) is a precision-grade RF connector designed for applications up to 26.5 GHz. This panel-mount adapter features two SMA Female interfaces and a 4-hole flange for secure and stable installation in enclosures, test fixtures, or RF systems. Constructed with high-quality materials for low VSWR and minimal signal loss, this adapter ensures excellent performance in both lab and field environments.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤1.3:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 26.5 GHz |

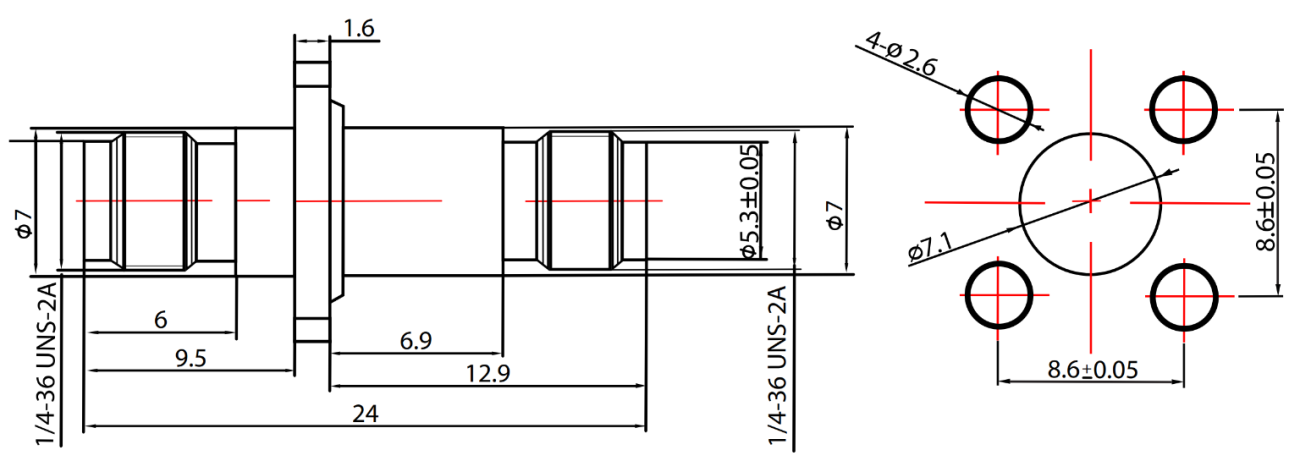

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper, Gold Plated |
| Body Material | Passivated Stainless Steel TYPE 303 |
| Insulator | PTFE |
