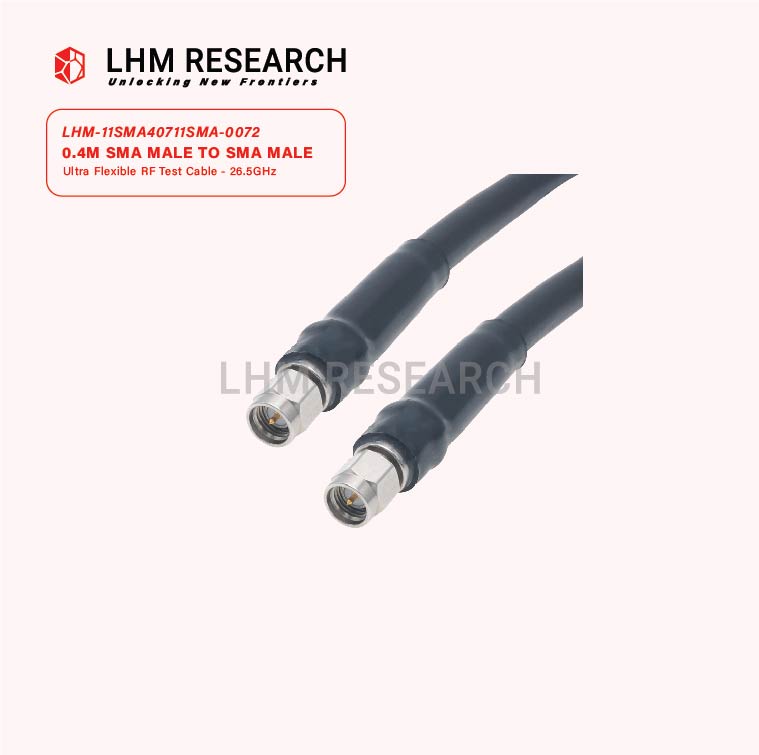

0.4m SMA Male to SMA Male
Ultra Flexible RF Test Cable – 26.5 GHz
The 0.4m SMA Male to SMA Male Ultra Flexible RF Test Cable is designed for high-frequency signal transmission up to 26.5 GHz, offering an ultra-flexible solution without sacrificing performance. Its low insertion loss and excellent phase stability make it an essential tool for engineers and technicians working in dynamic testing environments. Ideal for tight spaces, this cable ensures reliable signal integrity even with frequent movement or repositioning, making it perfect for both laboratory and field applications.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 26.5 GHz |
| Impedance | 50 ± 2 ohms |
| VSWR | ≤1.3:1 (DC 0~26.5 GHz) |

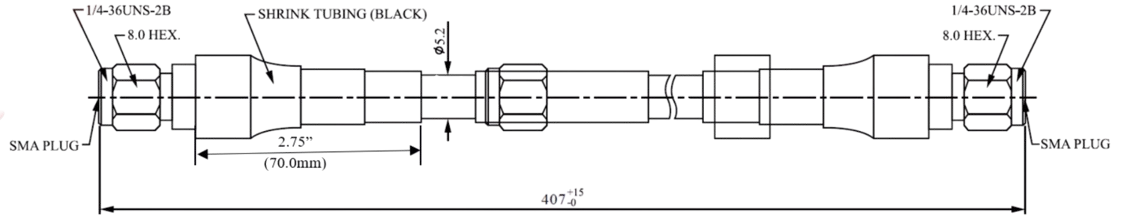

Structural Dimensions
| Structure | Material |
|---|---|
| Center Conductor | Silver Plated Copper |
| Dielectric | Low Density PTFE |
| Jacket | Polyurethane |
| Jacket Diameter | 5.20 ± 0.15 mm |
| Min. Bending Radius | 26 mm |
| Shielding Effect | > 100 (0~1 GHz) dB |
