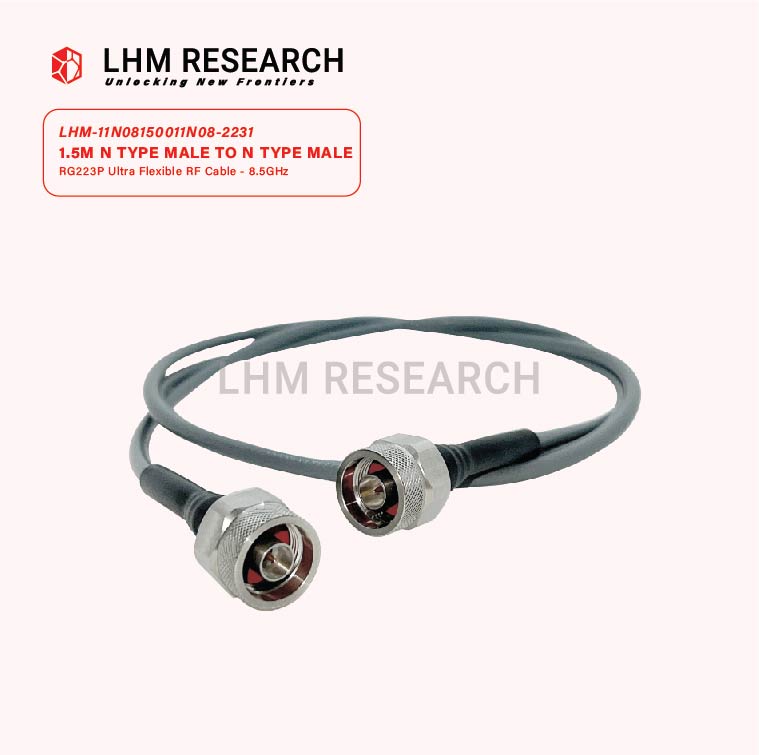

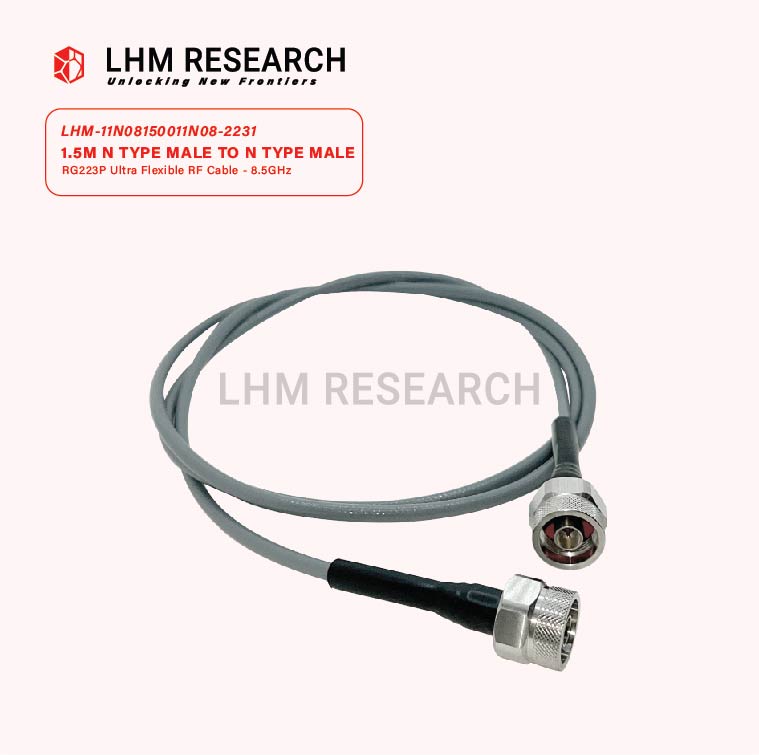

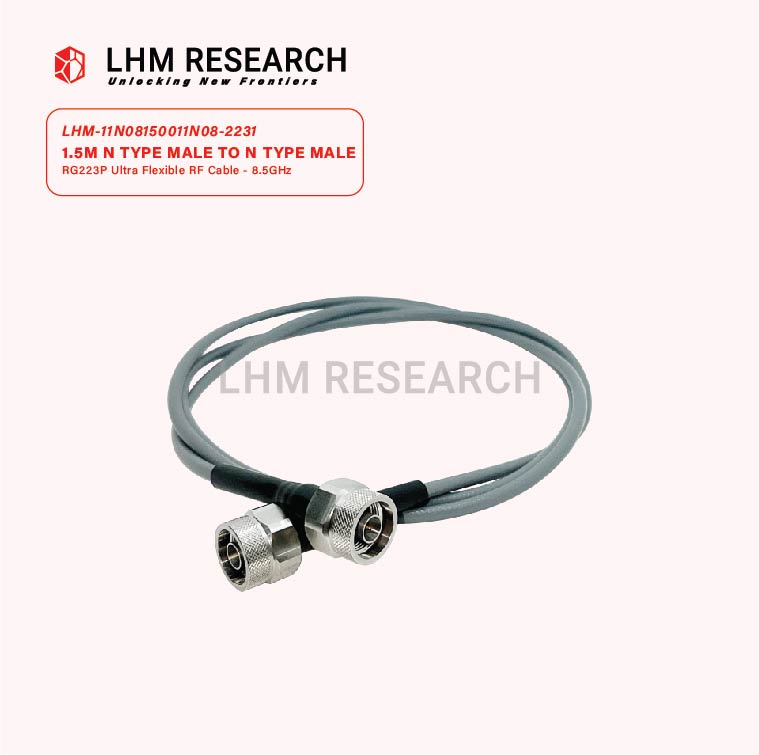

1.5m N Type Male to N Type Male
RG223P Ultra Flexible RF Cable – 8.5 GHz
The 1.5m N Type Male to N Type Male RG223P Ultra Flexible RF Cable is designed for reliable RF signal transmission up to 8.5 GHz, combining excellent durability with high flexibility. Built with RG223P double-shielded coaxial cable, this assembly offers low signal loss, superior shielding effectiveness, and resistance to repeated bending. Its rugged N Type Male connectors and flexible design make it ideal for test environments and field deployments requiring stable, long-reach RF connections.
Key Specifications
| Connector Type 1 | N Type | Connector Type 2 | N Type |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 8.5 GHz |
| Capacitance | 98 pF/m |
| Impedance | 50 ± 2 ohms |
| Cutoff Frequency | 31 GHz |
| VSWR | ≤ 1.25 @ DC~12.4 GHz |

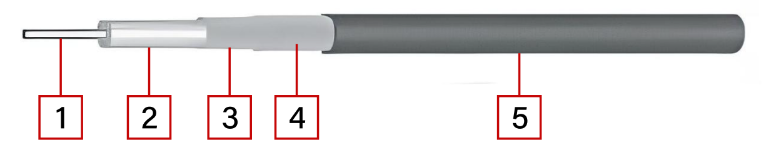

Structural Dimensions
| Structure | Material |
|---|---|
| 1. Center Conductor | Silver Plated Copper |
| 2. Dielectric | PTFE |
| 3. Outer Conductor | Silver Plated Copper |
| 4. Outer Braid | Silver Plated Copper Braid |
| 5. Jacket | PVC (Polyvinyl Chloride) |
