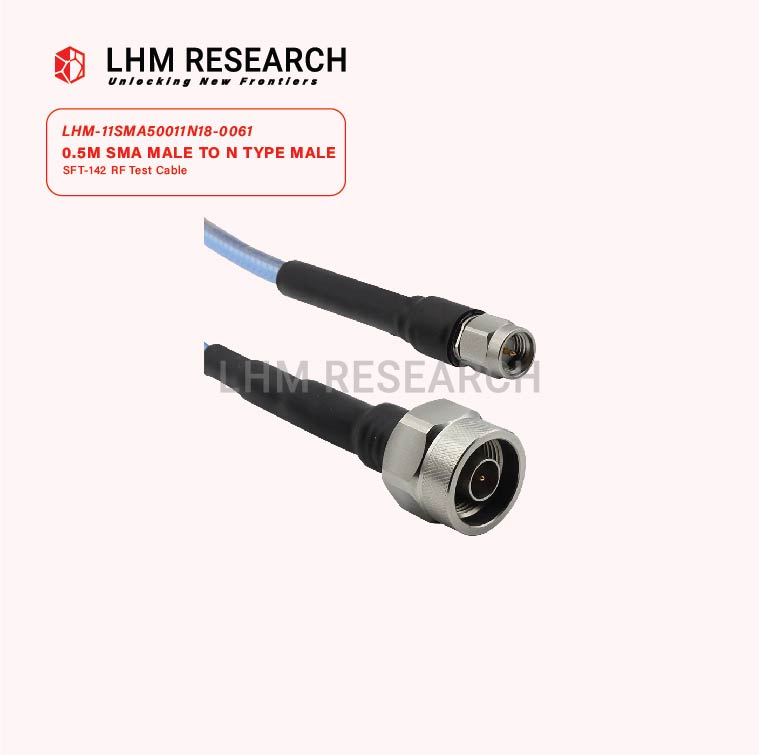

0.5m SMA Male to N Type Male
SFT-142 RF Test Cable
The 0.5m SMA Male to N Type Male SFT-142 RF Test Cable is built for high-performance RF testing and signal transmission, offering excellent electrical stability and mechanical durability. Constructed with SFT-142 semi-flexible coaxial cable, it provides low insertion loss and consistent phase characteristics across a broad frequency range. Ideal for interfacing precision SMA equipment with rugged N Type connectors, this 0.5-meter assembly is a dependable solution for lab and field test applications.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | N Type |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 26.5 GHz |
| Adapter Frequency | 18 GHz |
| Impedance | 50 ± 2 ohms @ 18 GHz |
| Attenuation Factor | ± 0.15 dB @ 18 GHz |
| Shielding Factor | 100 dB |

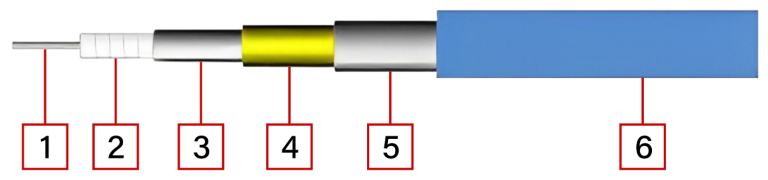

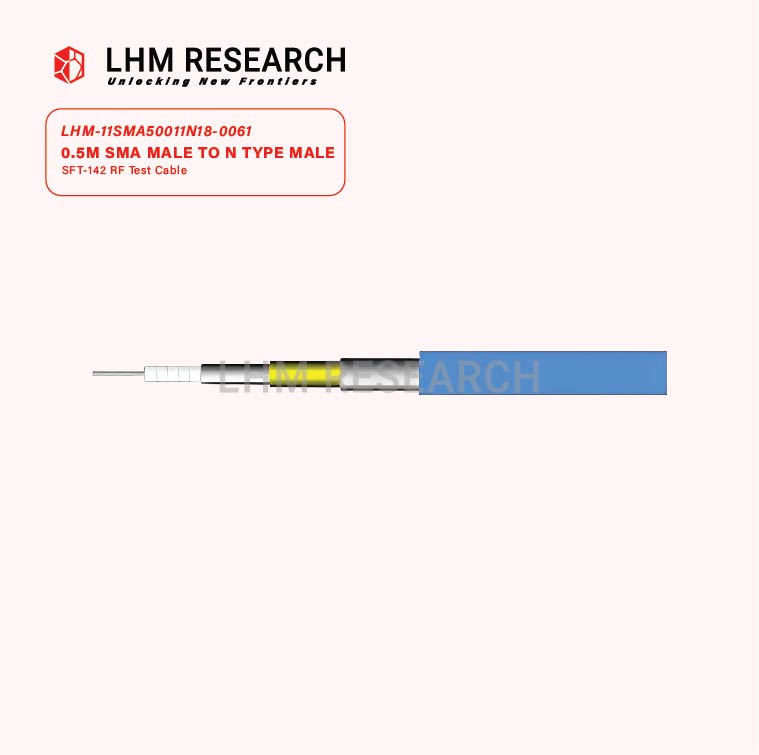

Structural Dimensions
| Structure | Material |
|---|---|
| 1. Center Conductor | Silver Plated Copper |
| 2. Dielectric | PTFE |
| 3. Outer Conductor | Silver Plated Copper |
| 4. Inner Shield | Silver Plated Copper |
| 5. Outer Shield | Silver Plated Copper |
| 6. Jacket | Blue FEP (Semi-transparent) |
