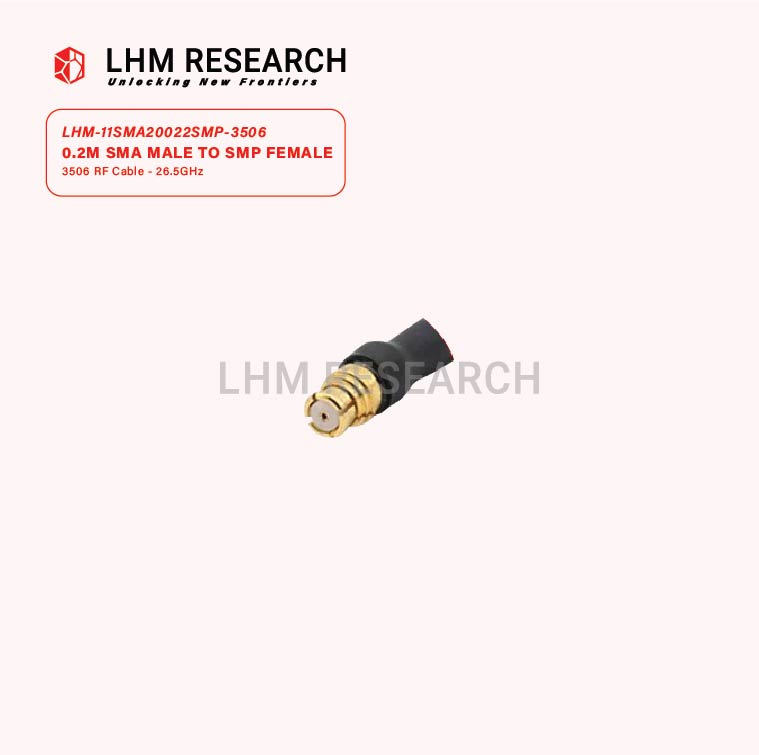

0.2m SMA Male to SMP Female
3506 RF Cable – 26.5GHz
The 0.2m SMA Male to SMP Female 3506 RF Cable is a high-performance, compact solution for high-frequency signal transmission up to 26.5 GHz. Built using 3506 series low-loss cable, it delivers excellent phase and amplitude stability, making it ideal for dense test setups, internal module interconnects, and high-frequency signal routing in both lab and system environments.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMP |
| Connector Gender 1 | Male | Connector Gender 2 | Female |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency | Â 67 GHz |
| Impedance | 50 ohms |
| Attenuation Factor | 0.15 dB at 40 GHz |
| Shielding Effectiveness | 90 dB |

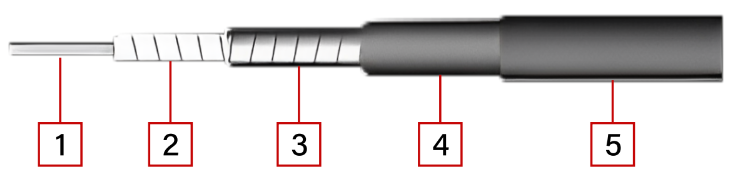

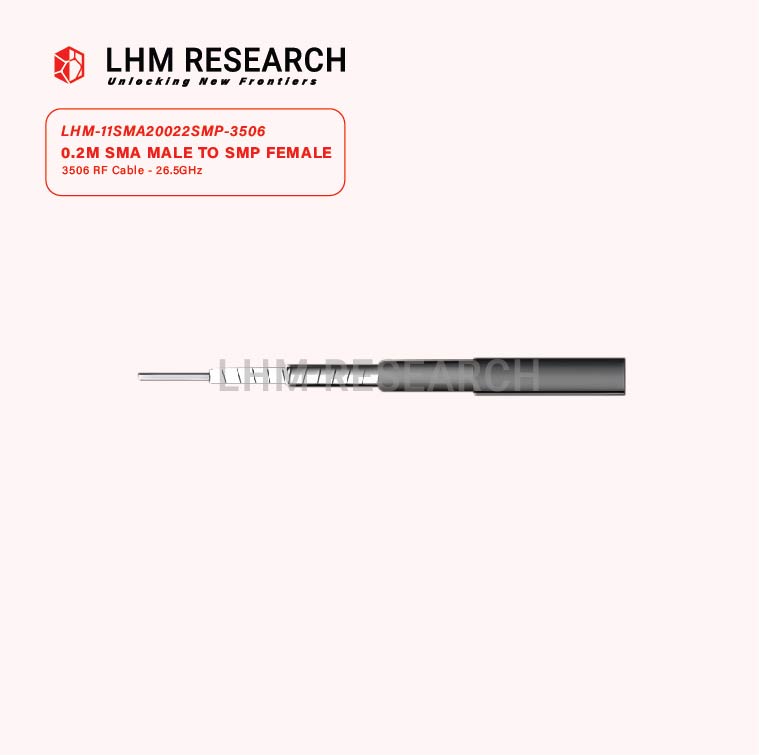

Structural Dimensions
| Structure | Material |
|---|---|
| 1. Center Conductor | Silver Plated Copper |
| 2. Dielectric | PTFE |
| 3. Outer Conductor | Silver Plated Copper Tape |
| 4. Outer Braid | Silver Plated Copper Braid |
| 5. Jacket | Grey FEP |
