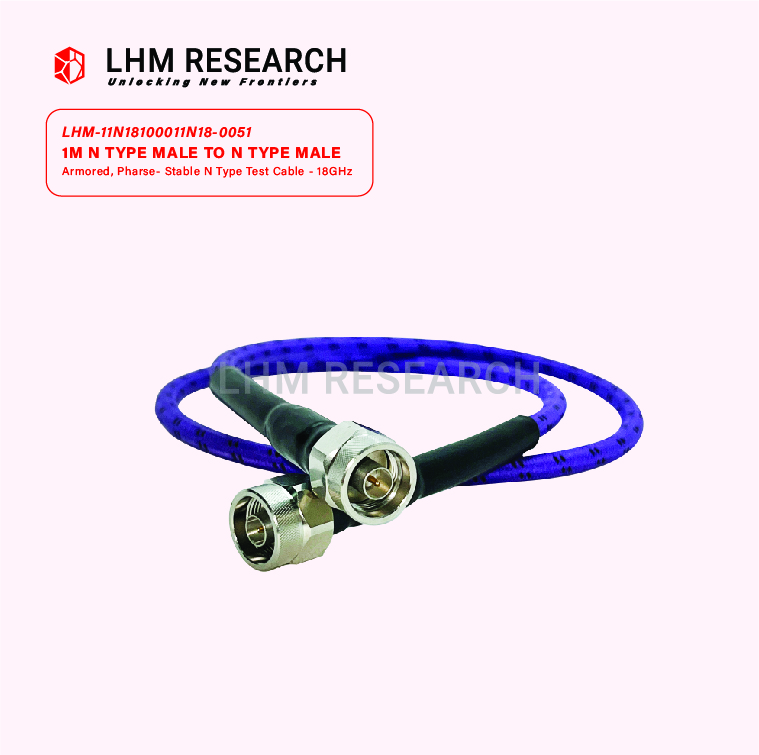

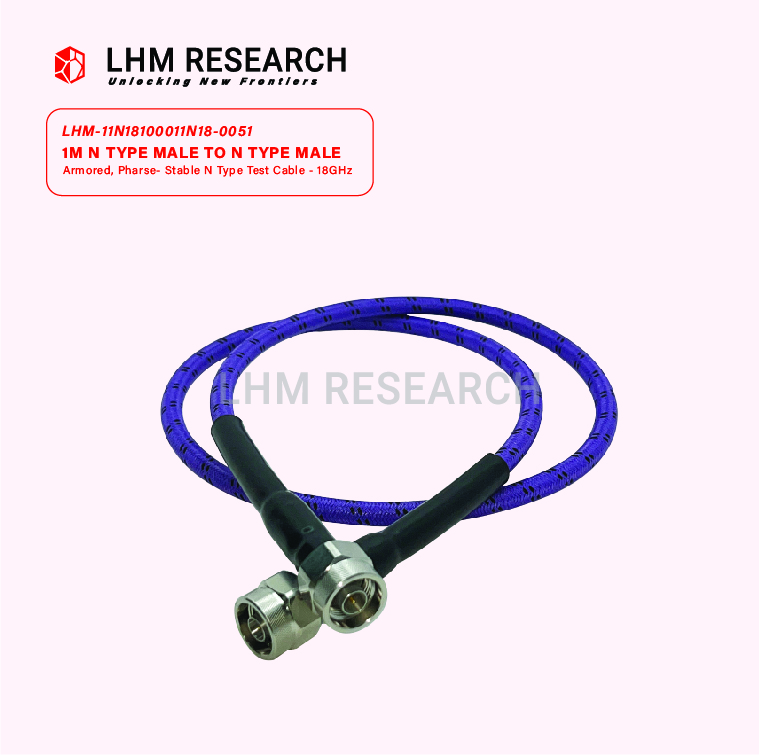

1m N Type Male to N Type Male
Armored, Phased-Stabled N Type Test Cable – 18 GHz
The 1m N Type Male to N Type Male Armored, Phased-Stabilized Test Cable is designed for high-frequency signal transmission with enhanced durability and performance up to 18 GHz. Featuring armored shielding and phased-stabilized construction, this cable ensures stable and reliable signal integrity in demanding RF test environments, making it ideal for applications in telecommunications, aerospace, defense, and other high-performance systems.
Key Specifications
| Connector Type 1 | N Type | Connector Type 2 | N Type |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 18 GHz |
| Capacitance | 97 pF/m |
| Impedance | 50 ± 2 ohms |
| VSWR | ≤ 1.30 (DC~6 GHz) |

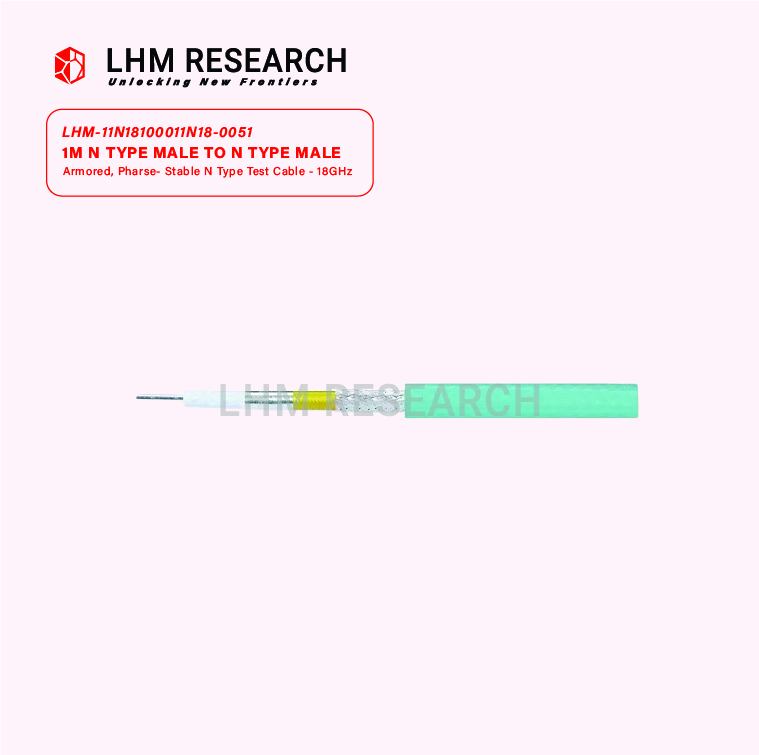

Structural Dimensions
| Structure | Material |
|---|---|
| 1. Center Conductor | Silver Plated Copper |
| 2. Dielectric | PTPE |
| 3. Outer Conductor | Silver Plated Copper Strip |
| 4. Outer Braid | Silver Plated Copper Braid |
| 5. Jacket | FEP |
