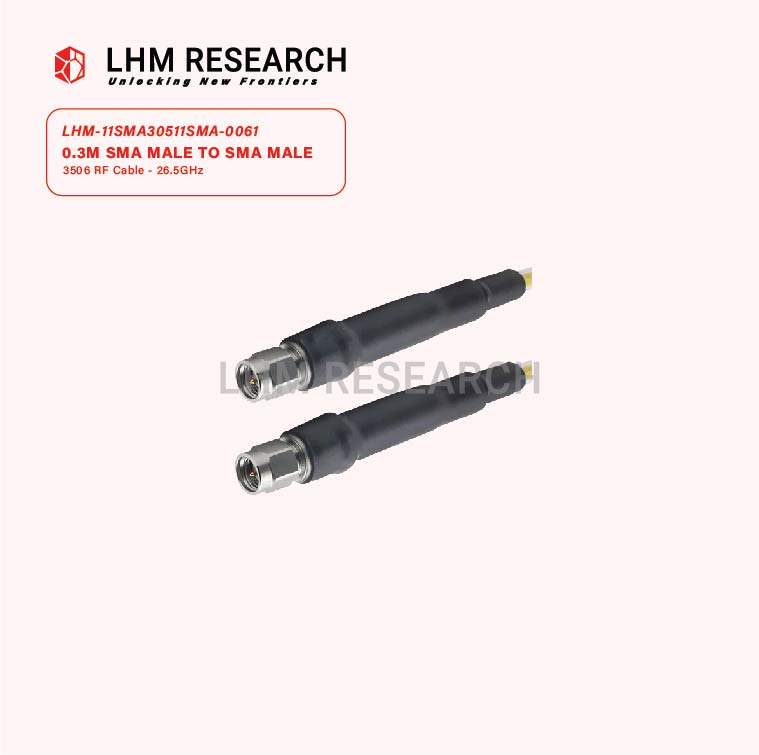

0.3m SMA Male to SMA Male
RF Test Cable – 26.5GHz
The 0.3m SMA Male to SMA Male RF Test Cable is designed for high-frequency testing applications up to 26.5 GHz, delivering low insertion loss and excellent phase stability. Built with precision-grade coaxial construction, it ensures reliable signal transmission for lab and field environments. The 0.3-meter length offers the flexibility needed for compact test setups without sacrificing performance. Ideal for applications requiring consistent and repeatable RF measurements.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 26.5 GHz |
| Impedance | 50 ohms |
| Capacitance | 95.2 pF/m |
| Shielding Effectiveness | 90 dB |

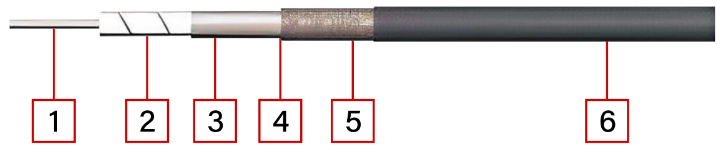

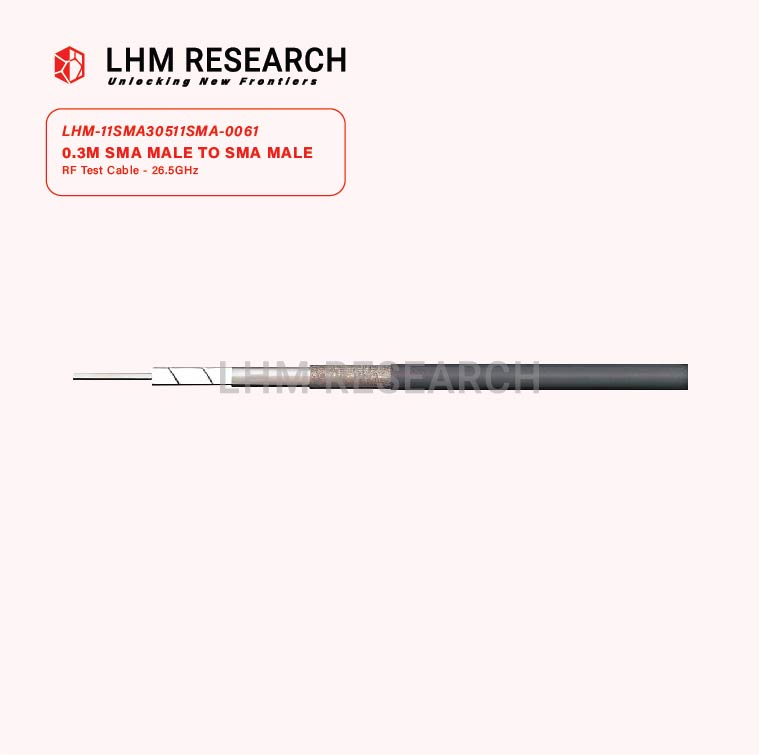

Structural Dimensions
| Structure | Material |
|---|---|
| 1. Center Conductor | Silver Plated Copper |
| 2. Dielectric | Solid PTPE |
| 3. Outer Conductor | Silver Plated Copper |
| 4. Intermediate Layer | High-Temperature Adhesive |
| 5. Outer Shield | Silver Plated Copper |
| 6. Jacket | FEP |
