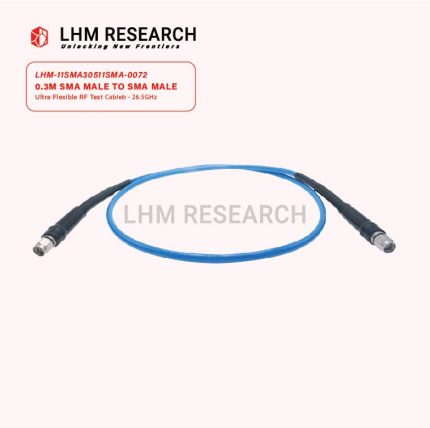

0.3m SMA Male to SMA Male
Ultra Flexible RF Test Cable – 26.5 GHz
The 0.3m SMA Male to SMA Male Ultra Flexible RF Test Cable is engineered for high-frequency testing up to 26.5 GHz, offering superior flexibility without compromising signal performance. Designed for tight bends and compact test environments, this cable provides low insertion loss, stable phase characteristics, and robust mechanical durability. It’s an ideal solution for lab technicians and engineers requiring high-performance connections in space-constrained setups.
Key Specifications
| Connector Type 1 | SMA | Connector Type 2 | SMA |
| Connector Gender 1 | Male | Connector Gender 2 | Male |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Operation Frequency (From DC) | Up to 26.5 GHz |
| Impedance | 50 ± 2 ohms |
| VSWR | ≤1.3:1 (DC 0~26.5 GHz) |
Structural Dimensions
| Structure | Material |
|---|---|
| Center Conductor | Silver Plated Copper |
| Dielectric | Low Density PTFE |
| Jacket | Polyurethane |
| Jacket Diameter | 5.20 ± 0.15 mm |
| Min. Bending Radius | 26 mm |
| Shielding Effect | > 100 (0~1 GHz) dB |
