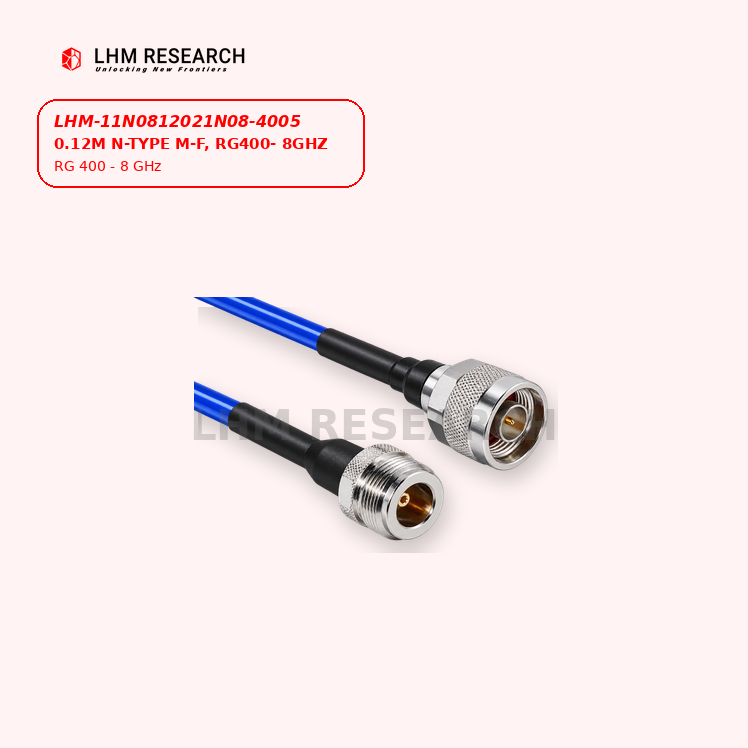

0.12M N-Type M-F
RG400- 8GHz
Designed for reliable RF testing and signal transmission, this 0.12m N-Type Male to N-Type Female RG400 coaxial cable features a double-shielded construction for stable signal performance and effective EMI shielding. With a 50Ω impedance, it is suitable for RF test equipment, laboratory setups, communication systems, and other high-frequency applications up to 8GHz.
Key Specifications
| Cable Type | RG400 Flexible RF Cable |
| Connector Type 1 | N-Type |
| Connector Gender 1 | Male |
| Connector Type 2 | N-Type |
| Connector Gender 2 | Female |
| Cable Length | 0.12 m |
| Rated Frequency | Up to 8 GHz |
| Outer Jacket | PUR |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Impedance | 50 ± 2 Ω |
| Capacitance | 95.2 pF/m |
| Velocity Factor | 70% |
| Propagation Delay | 4.38 ns/m |
| Maximum Operating Voltage | 1000 V |
| Shielding Effectiveness | 90 dB |
| Dielectric Constant | 2.05 |
| Inductance | 0.22 µH/m |
Cable Construction
| Layer | Nominal Diameter | Material |
|---|---|---|
| Inner Conductor | 0.92 ± 0.02 mm | Silver-Plated Copper |
| Insulation Dielectric | 3.00 ± 0.05 mm | Solid PTFE |
| Inner Shield | 3.18 ± 0.05 mm | Silver-Plated Copper Tape |
| Outer Shield | 3.95 ± 0.10 mm | Silver-Plated Copper Wire |
| Outer Jacket | 5.00 ± 0.10 mm | PUR |
