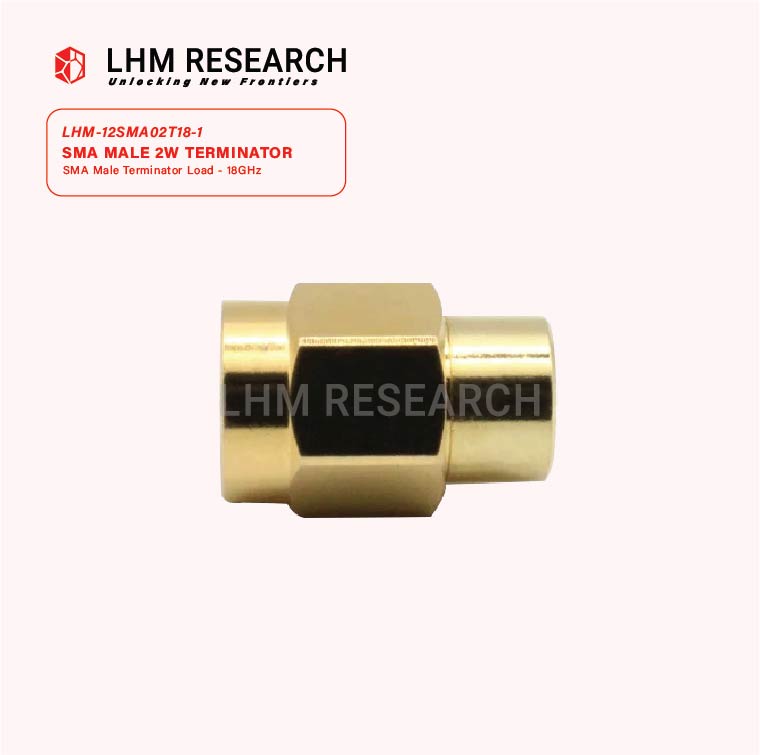

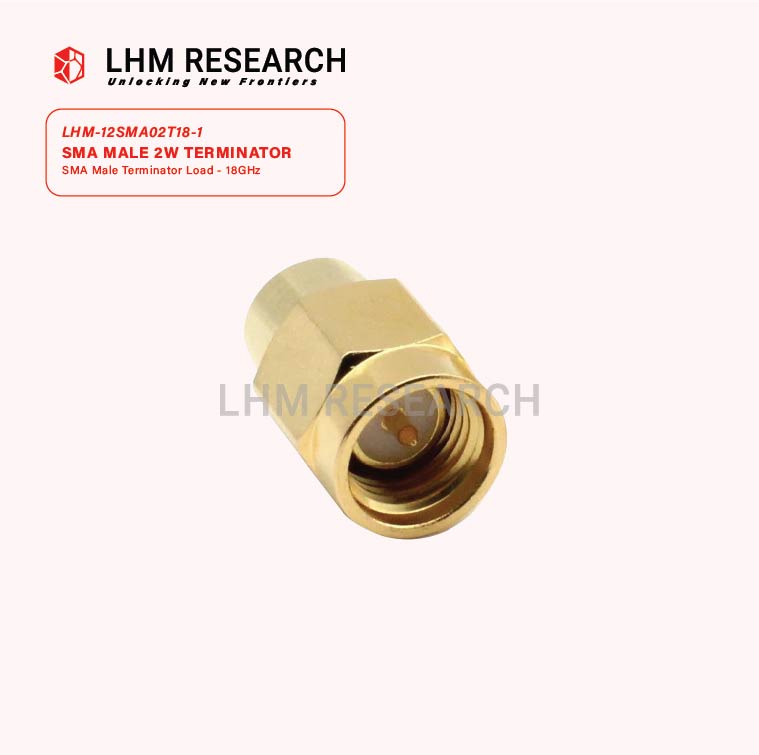

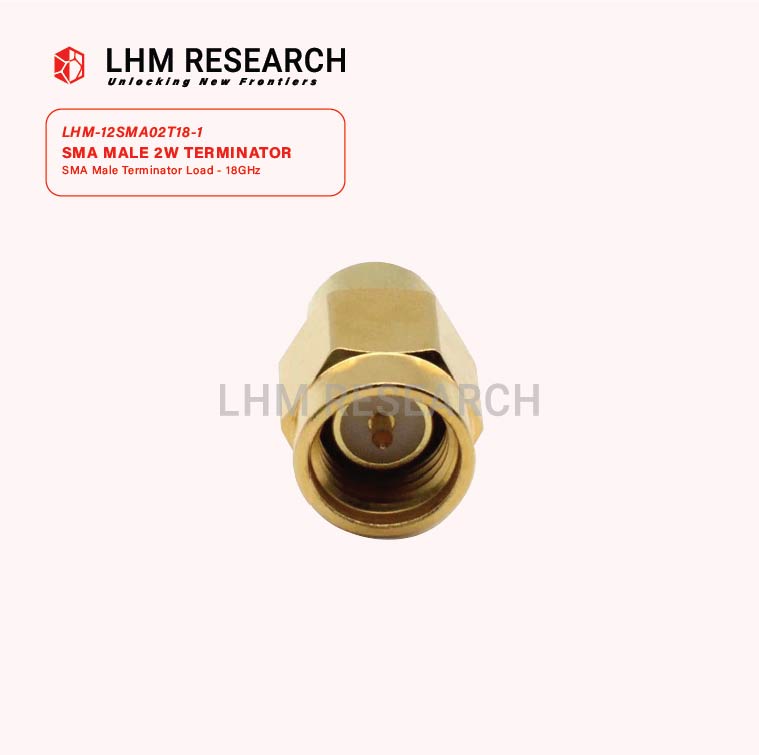

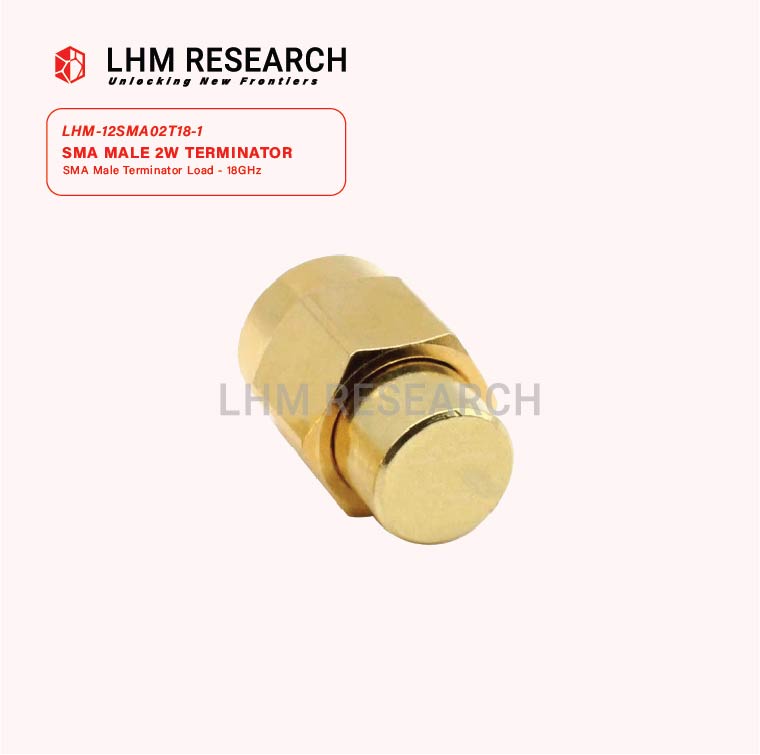

SMA Male 2W Terminator
SMA Male Terminator Load – 18 GHz
The SMA Male 2W Terminator Load – 18 GHz is a high-performance RF termination designed for precision and reliability in demanding RF and microwave applications. Engineered to handle 2 watts of continuous power and operate effectively up to 18 GHz, this terminator is an essential component for eliminating signal reflections and maintaining proper impedance in high-frequency systems.
Constructed with a durable brass body and finished with gold plating on the center contact, this load ensures excellent corrosion resistance, stable electrical performance, and a secure SMA male connection. Its low VSWR (<1.2:1 typical) minimizes return loss, ensuring clean signal paths and improved accuracy in both lab testing and installed systems.
Key Specifications
| Connector Type 1 | SMA |
| Connector Gender 1 | Male |
| Connector Angle 1 | Straight |
| Connector Mount Method | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | ≤ 1.2:1 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 18 GHz |
| Dielectric Withstanding Voltage | 500 Vrms |

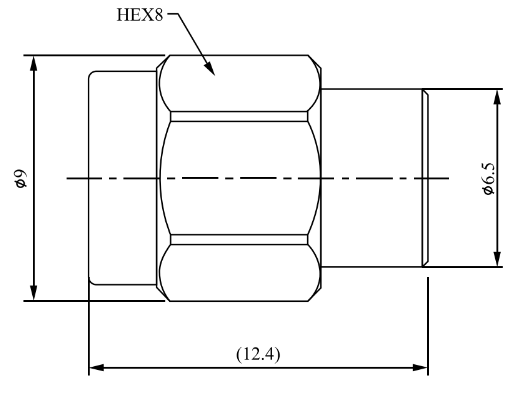

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Center Conductor | Beryllium Copper Alloy, Gold Plated |
| Body Material | Brass Gold Plated |
| Durability | 500 Cycle Min. |
