FAKRA TEST PROBES

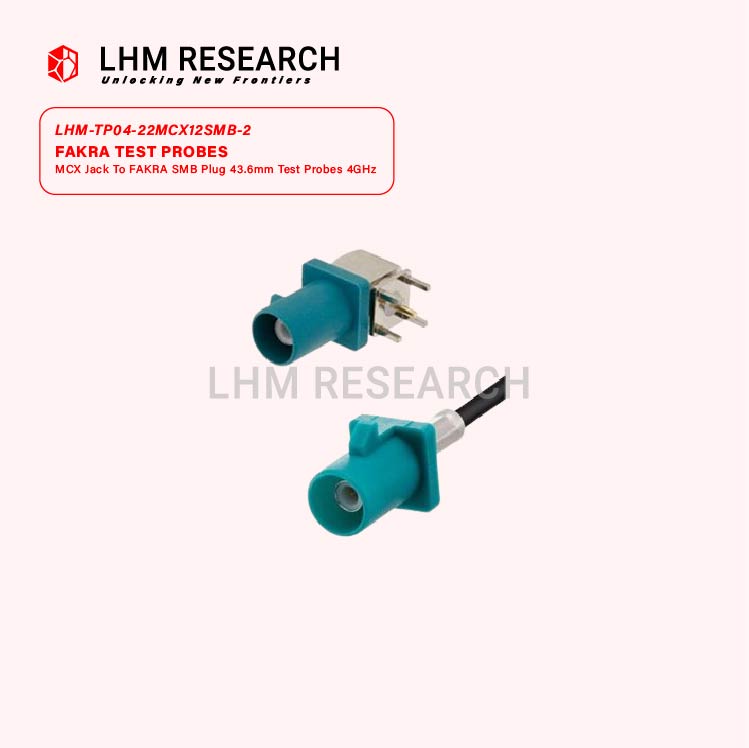

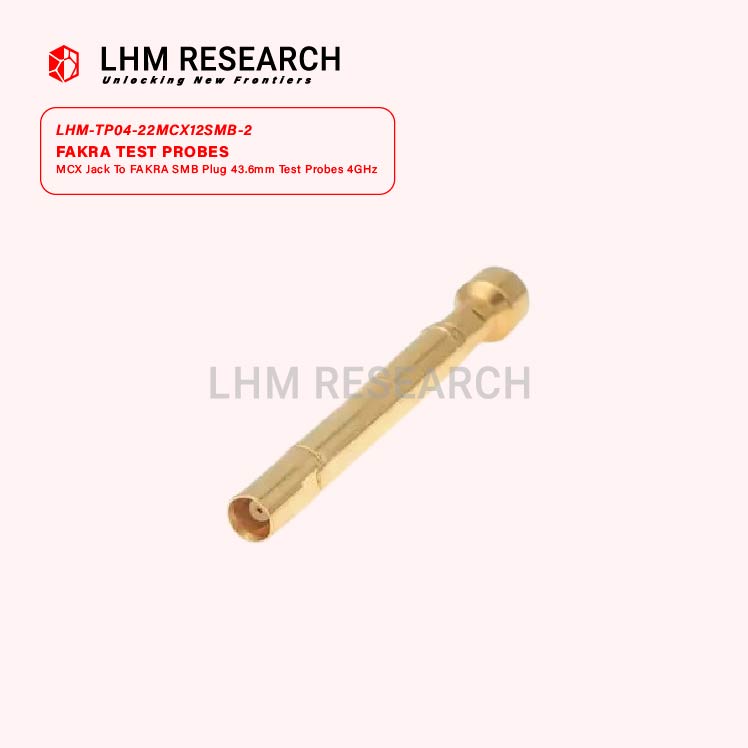

MCX Jack to FAKRA SMB Plug 43.6mm Test Probes 4 GHz
The FAKRA Test Probes, featuring an MCX Jack to FAKRA SMB Plug configuration, are designed for precise RF testing in both laboratory and field environments. These 43.6mm probes support frequencies up to 4 GHz, offering a secure connection and reliable signal integrity for testing and validation purposes in various applications, including automotive and telecommunications systems.
Key Specifications
| Connector Type 1 | MCX | Connector Type 2 | Fakra |
| Connector Gender 1 | Female | Connector Gender 2 | Plug |
| Connector Angle 1 | Straight | Connector Angle 2 | Straight |
| Connector Mount Method 1 | None | Connector Mount Method 2 | None |
Electrical Specifications
| Parameter | Specification |
|---|---|
| VSWR | 1:<1.50 |
| Impedance | 50 ohms |
| Frequency Range (From DC) | Up to 4 GHz |

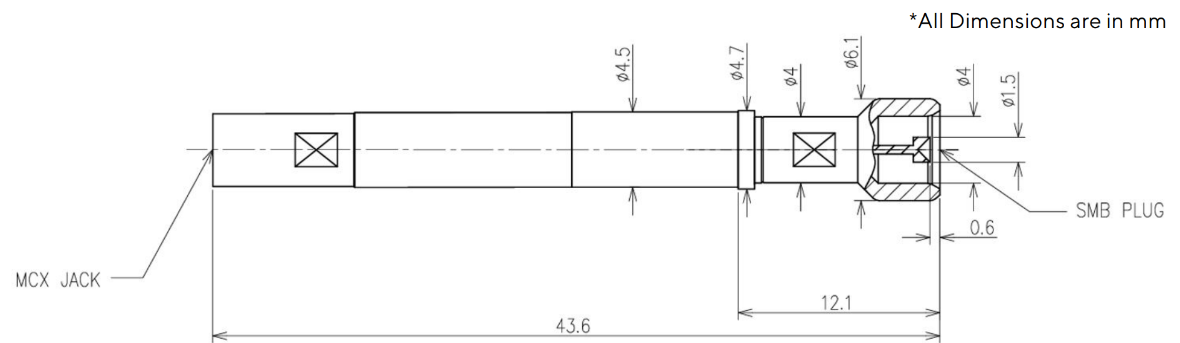

Mechanical Specifications
| Parameter | Specification |
|---|---|
| Insulator | PTFE |
| Body Material | Copper Alloy Gold Plated |
